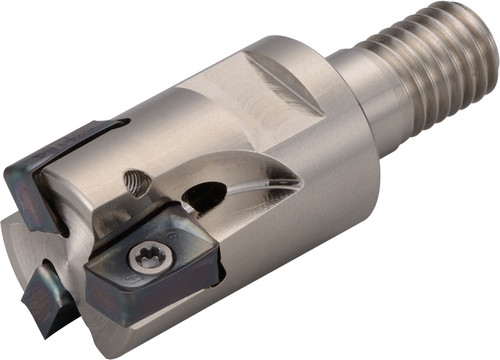

Kyocera MEW 32M16153T, Modular Head End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN05320
$550.97
Kyocera MEW 32M16153T 90 Degree Lead, 3 Flute, Coolant-Through Modular Head End Mill with a 32.00mm Cutting Diameter for Shouldering, Slotting, Facing, Plunging Applications

Specifications

Series
MEW
Unit of Measure
Metric
Shank Type
Modular Connection
Material
Steel
Cutting Diameter (Decimal)
1.26
Cutting Diameter (Metric)
32
Weldon Flat
No
Cutting Diameter
32 mm
Number of Flutes
3
Shank Height (Metric)
24
Shank Height (Decimal)
0.94
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8837961
ANSI Part Number
MEW32M16153T
ISO Part Number
MEW32-M16-15-3T
Material Group / Grade
GR99
Tool Style
MEW
Cutting Diameter Minimum (Decimal)
1.26
Number of Inserts
3
Hand of Holder
Right
Max. Depth Of Cut
15 mm
Maximum Depth of Cut (Decimal)
0.59
Cutting Diameter Minimum (Metric)
32
Cutting Maximum (Decimal)
1.26
Connection Diameter (Decimal)
0.67
Connection Diameter (Metric)
17
Contact Surface Diameter Machine Side (Decimal)
1.18
Contact Surface Diameter Machine Side (Metric)
30
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
