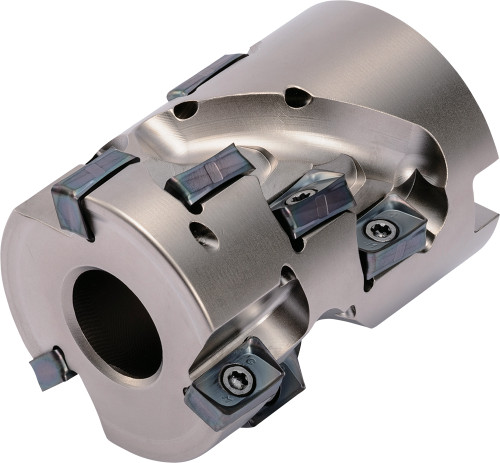

Kyocera 90° Helical Indexable Face Mill MEWH2000R1543T: 2" Cut Dia, 2.0866" Max DOC, .750" Bore, THN04202

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04202
$1,727.54

Kyocera MEW 90 degree helical indexable face mill, takes MEWH-style rectangle inserts, 3 flutes, screw insert holding, external coolant, right hand. Steel body. Manufacturer part number THN04202.

Specifications

Series
MEW
Unit of Measure
Inch
Material
Steel
Cutting Diameter (Decimal)
2.0000
Cutting Diameter (Metric)
50.80
Cutting Diameter Maximum (Decimal)
2.0000
Number of Flutes
3
Size System
Decimal
Insert Holding Method
Screw
Coolant Option
External Coolant
ANSI Designation
MEWH2000R1543T
ISO Designation
MEWH2000R-15-4-3T
Insert Shape
Rectangle
Insert Style
MEWH
Cutting Diameter Minimum (Decimal)
2.0000
Number of Inserts
12
Hand Direction
Right
Maximum Depth of Cut (Decimal)
2.0866
Maximum Depth of Cut (Metric)
53.00
Cutting Diameter Minimum (Metric)
50.80
Cutting Diameter Maximum (Metric)
50.80
Connection Bore Diameter (Decimal)
0.7500
Connection Bore Diameter (Metric)
19.05
Tool Entering Angle
90
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
Machining Operations
Facing, Shouldering
