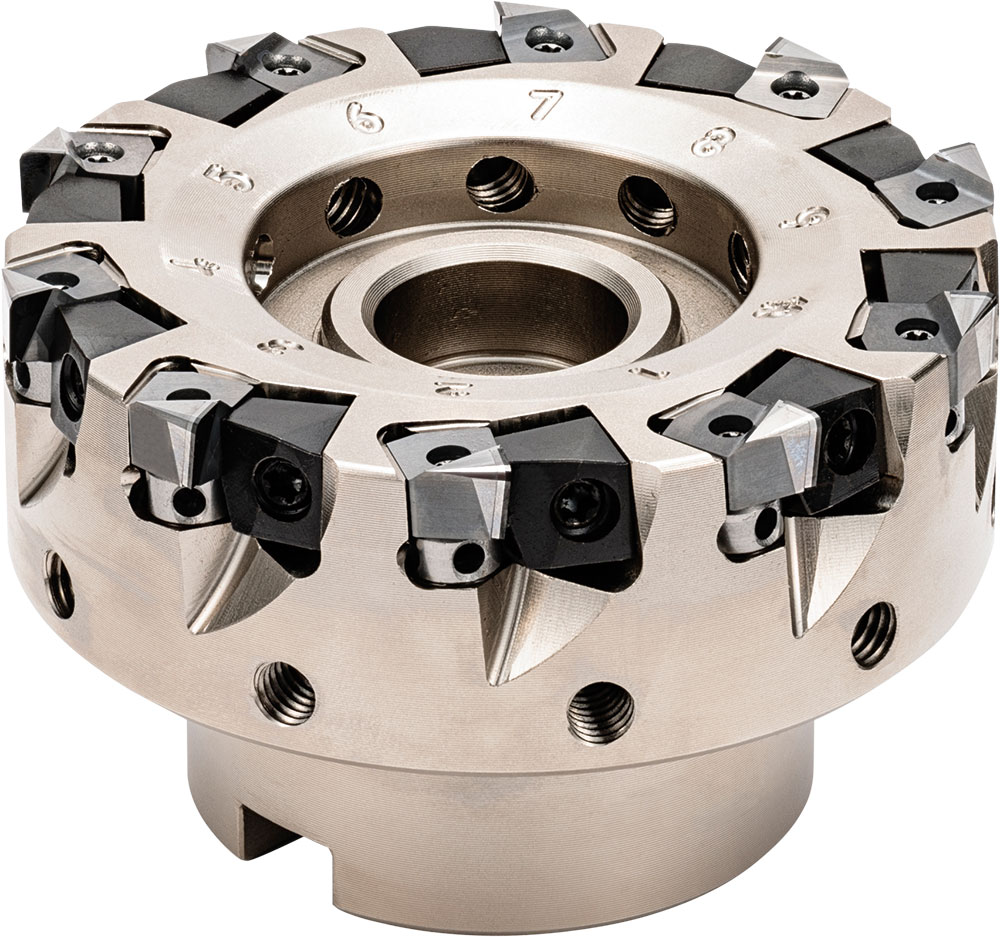

Kyocera MFAH 080RS6TMSF Metric Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08273
$1,704.81
Kyocera MFAH 080RS6TMSF Metric Bore Diameter, Standard Pitch, 6 Flute, 90 Degree Face Mill with a 80.00mm Cutting Diameter for Aluminum Facing, Finishing Applications

Specifications

Series
MFAH
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
3.15
Cutting Diameter (Metric)
80
Cutting Diameter
80 mm
Number of Flutes
6
Application
Facing, Finish Milling
Insert Holding Method
Screw or Clamp
Coolant Through
No
Old Material Number
8858631
ANSI Part Number
MFAH080RS6TMSF
ISO Part Number
MFAH080RS-6T-M-SF
Material Group / Grade
GR99
Tool Style
MFAH
Cutting Diameter Minimum (Decimal)
3.15
Number of Inserts
6
Hand of Holder
Right
Max. Depth Of Cut
4.60 mm
Maximum Depth of Cut (Decimal)
0.18
Cutting Diameter Minimum (Metric)
80
Cutting Maximum (Decimal)
3.15
Connection Bore Diameter (Decimal)
1.06
Connection Bore Diameter (Metric)
27
Contact Surface Diameter Machine Side (Decimal)
2.36
Contact Surface Diameter Machine Side (Metric)
60
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFAH_Milling_Cutter_for_Finishing_Aluminum.pdf
