Kyocera MFAH 125RA10TMSF Metric Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08356
$5,114.44

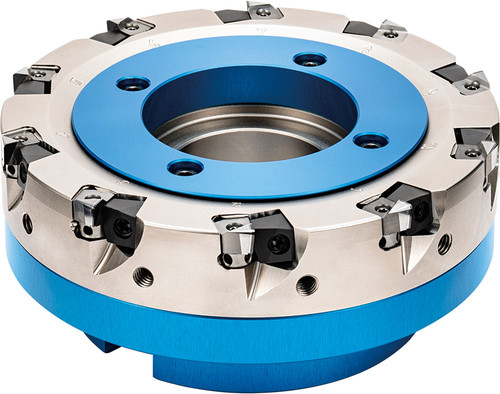

Kyocera MFAH 125RA10TMSF Metric Bore Diameter, Standard Pitch, 10 Flute, 90 Degree Face Mill with a 125.00mm Cutting Diameter for Aluminum Facing, Finishing Applications

Specifications

Series
MFAH
Unit of Measure
Metric
Material
Steel/Aluminum
Cutting Diameter (Decimal)
4.92
Cutting Diameter (Metric)
125
Cutting Diameter
125 mm
Number of Flutes
10
Application
Facing, Finish Milling
Insert Holding Method
Screw or Clamp
Coolant Through
Yes
Old Material Number
8858647
ANSI Part Number
MFAH125RA10TMSF
ISO Part Number
MFAH125RA-10T-M-SF
Material Group / Grade
GR99
Tool Style
MFAH
Cutting Diameter Minimum (Decimal)
4.92
Number of Inserts
10
Hand of Holder
Right
Max. Depth Of Cut
4.60 mm
Maximum Depth of Cut (Decimal)
0.18
Cutting Diameter Minimum (Metric)
125
Cutting Maximum (Decimal)
4.92
Connection Bore Diameter (Decimal)
1.57
Connection Bore Diameter (Metric)
40
Contact Surface Diameter Machine Side (Decimal)
3.70
Contact Surface Diameter Machine Side (Metric)
94
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFAH_Milling_Cutter_for_Finishing_Aluminum.pdf
