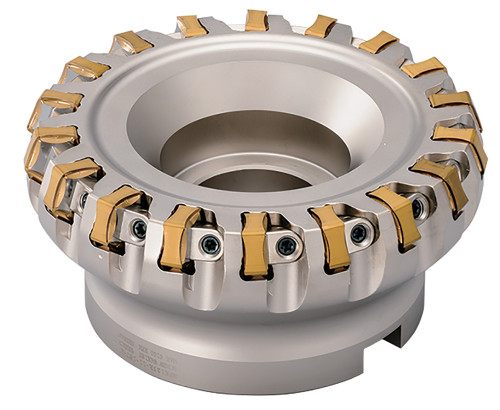

Kyocera MFK 200R1128TM Metric Bore Diameter, 70 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08118
$3,771.76
Kyocera MFK 200R1128TM Metric Bore Diameter, Extra-Fine Pitch, 28 Flute, 70 Degree Face Mill with a 200.00mm Cutting Diameter for Facing, Cast Iron Milling Applications

Specifications

Series
MFK
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
7.8740 - 8.2284
Cutting Diameter (Metric)
200 - 209
Cutting Diameter
209 mm
Number of Flutes
28
Application
Facing
Insert Holding Method
Wedge Lock
Coolant Through
No
Old Material Number
8842568
ANSI Part Number
MFK200R1128TM
ISO Part Number
MFK200R-11-28T-M
Material Group / Grade
GR99
Tool Style
MFK
Cutting Diameter Minimum (Decimal)
7.87
Number of Inserts
28
Hand of Holder
Right
Max. Depth Of Cut
6 mm
Maximum Depth of Cut (Decimal)
0.24
Cutting Diameter Minimum (Metric)
200
Cutting Maximum (Decimal)
8.23
Connection Bore Diameter (Decimal)
2.36
Connection Bore Diameter (Metric)
60
Contact Surface Diameter Machine Side (Decimal)
5.59
Contact Surface Diameter Machine Side (Metric)
142
Tool Entering Angle
70 degrees
Cutter Pitch
Extra-Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFK_Cast_Iron_Milling_W.pdf
