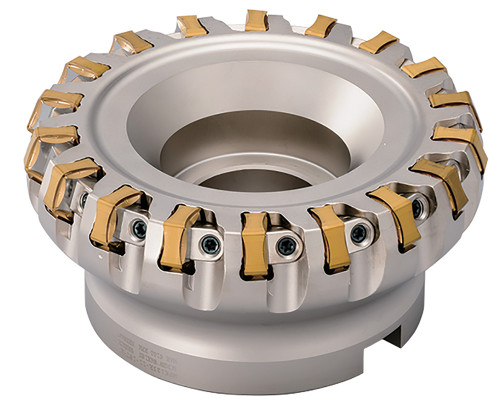

Kyocera MFK 3000R118T Inch Bore Diameter, 70 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08200
$1,236.66
Kyocera MFK 3000R118T Inch Bore Diameter, Fine Pitch, 8 Flute, 70 Degree Face Mill with a 3.0000" Cutting Diameter for Facing, Cast Iron Milling Applications

Specifications

Series
MFK
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
300 - 3.3402
Cutting Diameter (Metric)
76.20 - 84.84
Cutting Diameter
3.34 Inch
Number of Flutes
8
Application
Facing
Insert Holding Method
Wedge Lock
Coolant Through
No
Old Material Number
8842513
ANSI Part Number
MFK3000R118T
ISO Part Number
MFK3000R-11-8T
Material Group / Grade
GR99
Tool Style
MFK
Cutting Diameter Minimum (Decimal)
3
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
0.24 Inch
Maximum Depth of Cut (Metric)
6
Cutting Diameter Minimum (Metric)
76.20
Cutting Maximum (Metric)
84.84
Connection Bore Diameter (Decimal)
1
Connection Bore Diameter (Metric)
25.40
Contact Surface Diameter Machine Side (Decimal)
2.75
Contact Surface Diameter Machine Side (Metric)
69.85
Tool Entering Angle
70 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFK_Cast_Iron_Milling_W.pdf
