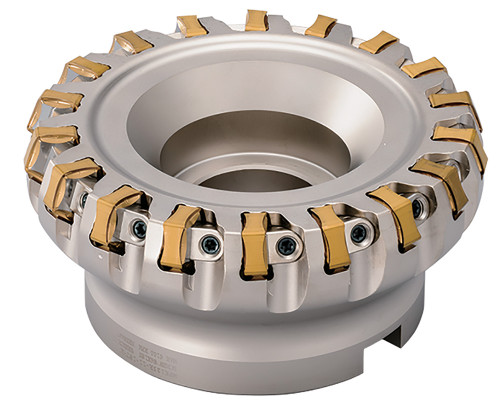

Kyocera MFK 6000R1116T Inch Bore Diameter, 70 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08230
$2,341.22
Kyocera MFK 6000R1116T Inch Bore Diameter, Fine Pitch, 16 Flute, 70 Degree Face Mill with a 6.0000" Cutting Diameter for Facing, Cast Iron Milling Applications

Specifications

Series
MFK
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
600 - 6.3402
Cutting Diameter (Metric)
152.40 - 161.04
Cutting Diameter
6.34 Inch
Number of Flutes
16
Application
Facing
Insert Holding Method
Wedge Lock
Coolant Through
No
Old Material Number
8842519
ANSI Part Number
MFK6000R1116T
ISO Part Number
MFK6000R-11-16T
Material Group / Grade
GR99
Tool Style
MFK
Cutting Diameter Minimum (Decimal)
6
Number of Inserts
16
Hand of Holder
Right
Max. Depth Of Cut
0.24 Inch
Maximum Depth of Cut (Metric)
6
Cutting Diameter Minimum (Metric)
152.40
Cutting Maximum (Metric)
161.04
Connection Bore Diameter (Decimal)
2
Connection Bore Diameter (Metric)
50.80
Contact Surface Diameter Machine Side (Decimal)
4.88
Contact Surface Diameter Machine Side (Metric)
123.95
Tool Entering Angle
70 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFK_Cast_Iron_Milling_W.pdf
