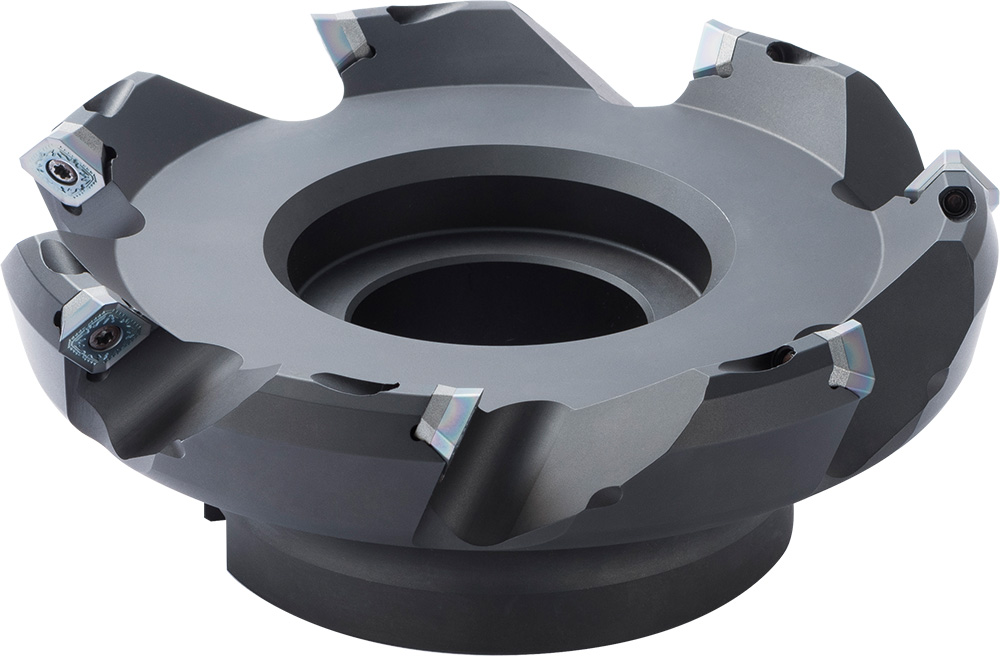

Kyocera MFLN 45250R10T Inch Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08469
$2,598.94
Kyocera MFLN 45250R10T Inch Bore Diameter, Standard Pitch, 10 Flute, 45 Degree Face Mill with a 250.00mm Cutting Diameter for Shouldering, Facing, Chamfering Applications

Specifications

Series
MFLN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
9.8425 - 10.7874
Cutting Diameter (Metric)
250 - 274
Cutting Diameter
274 mm
Number of Flutes
10
Application
Chamfering, Facing, Shouldering
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8864852
ANSI Part Number
MFLN45250R10T
ISO Part Number
MFLN45250R-10T
Material Group / Grade
GR99
Tool Style
MFLN
Cutting Diameter Minimum (Decimal)
9.84
Number of Inserts
10
Hand of Holder
Right
Max. Depth Of Cut
12 mm
Maximum Depth of Cut (Decimal)
0.47
Cutting Diameter Minimum (Metric)
250
Cutting Maximum (Decimal)
10.79
Connection Bore Diameter (Decimal)
1.88
Connection Bore Diameter (Metric)
47.63
Contact Surface Diameter Machine Side (Decimal)
8.74
Contact Surface Diameter Machine Side (Metric)
222
Tool Entering Angle
45 degrees
Cutter Pitch
Standard Pitch
