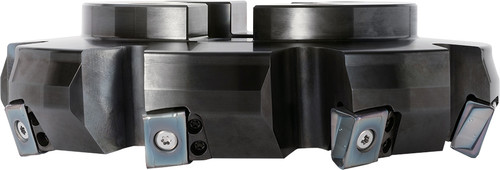

Kyocera MFLN 70250R10T Inch Bore Diameter, 70 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08455
$2,598.94
Kyocera MFLN 70250R10T Inch Bore Diameter, Standard Pitch, 10 Flute, 70 Degree Face Mill with a 250.00mm Cutting Diameter for Shouldering, Facing, Chamfering Applications

Specifications

Series
MFLN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
9.8425 - 10.3543
Cutting Diameter (Metric)
250 - 263
Cutting Diameter
263 mm
Number of Flutes
10
Application
Chamfering, Facing, Shouldering
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8864866
ANSI Part Number
MFLN70250R10T
ISO Part Number
MFLN70250R-10T
Material Group / Grade
GR99
Tool Style
MFLN
Cutting Diameter Minimum (Decimal)
9.84
Number of Inserts
10
Hand of Holder
Right
Max. Depth Of Cut
17 mm
Maximum Depth of Cut (Decimal)
0.67
Cutting Diameter Minimum (Metric)
250
Cutting Maximum (Decimal)
10.35
Connection Bore Diameter (Decimal)
1.88
Connection Bore Diameter (Metric)
47.63
Contact Surface Diameter Machine Side (Decimal)
8.74
Contact Surface Diameter Machine Side (Metric)
222
Tool Entering Angle
70 degrees
Cutter Pitch
Standard Pitch
Kyocera MFLN 70250R10T Inch Bore Diameter, 70 Degree Face Mill
$2,598.94
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
