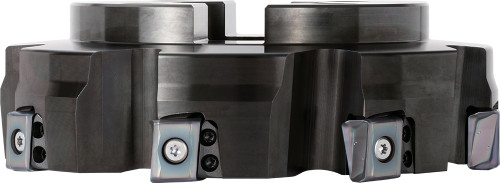

Kyocera MFLN 90080R4TM Metric Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08443
$885.85
Kyocera MFLN 90080R4TM Metric Bore Diameter, Standard Pitch, 4 Flute, 90 Degree Face Mill with a 80.00mm Cutting Diameter for Shouldering, Facing Applications

Specifications

Series
MFLN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
3.15
Cutting Diameter (Metric)
80
Cutting Diameter
80 mm
Number of Flutes
4
Application
Facing, Shouldering
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8864871
ANSI Part Number
MFLN90080R4TM
ISO Part Number
MFLN90080R-4T-M
Material Group / Grade
GR99
Tool Style
MFLN
Cutting Diameter Minimum (Decimal)
3.15
Number of Inserts
4
Hand of Holder
Right
Max. Depth Of Cut
20 mm
Maximum Depth of Cut (Decimal)
0.79
Cutting Diameter Minimum (Metric)
80
Cutting Maximum (Decimal)
3.15
Connection Bore Diameter (Decimal)
1.06
Connection Bore Diameter (Metric)
27
Contact Surface Diameter Machine Side (Decimal)
2.36
Contact Surface Diameter Machine Side (Metric)
60
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
