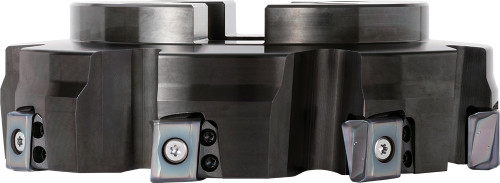

Kyocera MFLN 90250R10TM Metric Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08448
$2,598.94
Kyocera MFLN 90250R10TM Metric Bore Diameter, Standard Pitch, 10 Flute, 90 Degree Face Mill with a 250.00mm Cutting Diameter for Shouldering, Facing Applications

Specifications

Series
MFLN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
9.84
Cutting Diameter (Metric)
250
Cutting Diameter
250 mm
Number of Flutes
10
Application
Facing, Shouldering
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8864881
ANSI Part Number
MFLN90250R10TM
ISO Part Number
MFLN90250R-10T-M
Material Group / Grade
GR99
Tool Style
MFLN
Cutting Diameter Minimum (Decimal)
9.84
Number of Inserts
10
Hand of Holder
Right
Max. Depth Of Cut
20 mm
Maximum Depth of Cut (Decimal)
0.79
Cutting Diameter Minimum (Metric)
250
Cutting Maximum (Decimal)
9.84
Connection Bore Diameter (Decimal)
2.36
Connection Bore Diameter (Metric)
60
Contact Surface Diameter Machine Side (Decimal)
5.59
Contact Surface Diameter Machine Side (Metric)
142
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
Kyocera MFLN 90250R10TM Metric Bore Diameter, 90 Degree Face Mill
$2,598.94
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
