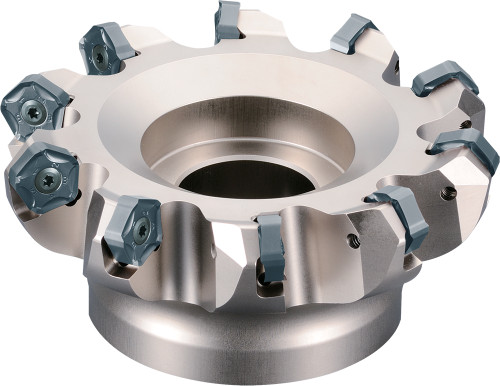

Kyocera MFPN 45063R5TM Metric Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04490
$828.63
Kyocera MFPN 45063R5TM Metric Bore Diameter, Fine Pitch, 5 Flute, 45 Degree Face Mill with a 63.00mm Cutting Diameter for Facing, Chamfering Applications

Specifications

Series
MFPN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
2.4803 - 2.9921
Cutting Diameter (Metric)
63 - 76
Cutting Diameter
76 mm
Number of Flutes
5
Application
Chamfering, Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8609066
ANSI Part Number
MFPN45063R5TM
ISO Part Number
MFPN45063R-5T-M
Material Group / Grade
GR99
Tool Style
MFPN
Cutting Diameter Minimum (Decimal)
2.48
Number of Inserts
5
Hand of Holder
Right
Max. Depth Of Cut
6 mm
Maximum Depth of Cut (Decimal)
0.24(GM/SM/GH), 0.20 (GL), 0.12 (W)
Maximum Depth of Cut (Metric)
6 (GM/SM/GH), 5 (GL), 3 (W)
Cutting Diameter Minimum (Metric)
63
Cutting Maximum (Decimal)
2.99
Connection Bore Diameter (Decimal)
0.87
Connection Bore Diameter (Metric)
22
Contact Surface Diameter Machine Side (Decimal)
1.85
Contact Surface Diameter Machine Side (Metric)
47
Tool Entering Angle
45 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
