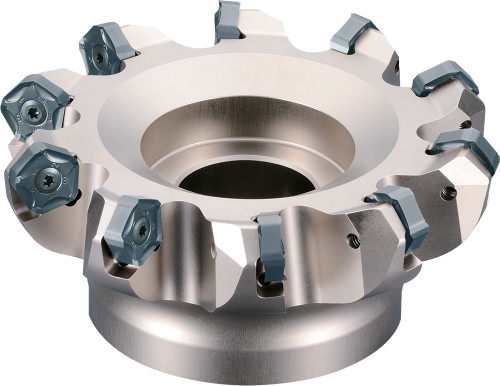

Kyocera MFPN 45125R13TM Metric Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04503
$1,849.51
Kyocera MFPN 45125R13TM Metric Bore Diameter, Extra-Fine Pitch, 13 Flute, 45 Degree Face Mill with a 125.00mm Cutting Diameter for Facing, Chamfering Applications

Specifications

Series
MFPN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
4.9213 - 5.4331
Cutting Diameter (Metric)
125 - 138
Cutting Diameter
138 mm
Number of Flutes
13
Application
Chamfering, Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8832352
ANSI Part Number
MFPN45125R13TM
ISO Part Number
MFPN45125R-13T-M
Material Group / Grade
GR99
Tool Style
MFPN
Cutting Diameter Minimum (Decimal)
4.92
Number of Inserts
13
Hand of Holder
Right
Max. Depth Of Cut
6 mm
Maximum Depth of Cut (Decimal)
0.24(GM/SM/GH), 0.20 (GL), 0.12 (W)
Maximum Depth of Cut (Metric)
6 (GM/SM/GH), 5 (GL), 3 (W)
Cutting Diameter Minimum (Metric)
125
Cutting Maximum (Decimal)
5.43
Connection Bore Diameter (Decimal)
1.57
Connection Bore Diameter (Metric)
40
Contact Surface Diameter Machine Side (Decimal)
3.43
Contact Surface Diameter Machine Side (Metric)
87
Tool Entering Angle
45 degrees
Cutter Pitch
Extra-Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
