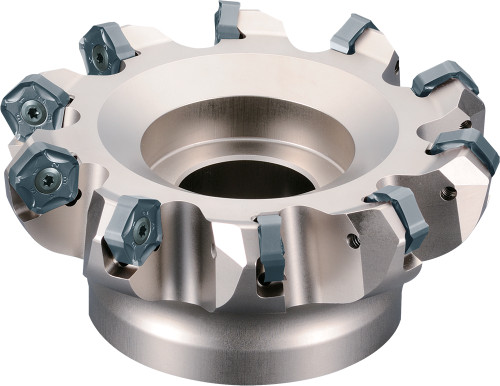

Kyocera MFPN 45160R8T Inch Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04453
$2,362.32
Kyocera MFPN 45160R8T Inch Bore Diameter, Coarse Pitch, 8 Flute, 45 Degree Face Mill with a 160.00mm Cutting Diameter for Facing, Chamfering Applications

Specifications

Series
MFPN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
6.30 - 6.82
Cutting Diameter (Metric)
160 - 173
Cutting Diameter
173 mm
Number of Flutes
8
Application
Chamfering, Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8831642
ANSI Part Number
MFPN45160R8T
ISO Part Number
MFPN45160R-8T
Material Group / Grade
GR99
Tool Style
MFPN
Cutting Diameter Minimum (Decimal)
6.30
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
6 mm
Maximum Depth of Cut (Decimal)
0.24(GM/SM/GH), 0.20 (GL), 0.12 (W)
Maximum Depth of Cut (Metric)
6 (GM/SM/GH), 5 (GL), 3 (W)
Cutting Diameter Minimum (Metric)
160
Cutting Maximum (Decimal)
6.81
Connection Bore Diameter (Decimal)
2
Connection Bore Diameter (Metric)
50.80
Contact Surface Diameter Machine Side (Decimal)
4.02
Contact Surface Diameter Machine Side (Metric)
102
Tool Entering Angle
45 degrees
Cutter Pitch
Coarse Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
