Cutting Diameter (Decimal)
5 - 5.32
Cutting Diameter (Metric)
127 - 135
Cutting Diameter
5.32 Inch
Application
Chamfering, Facing
Insert Holding Method
Screw
Old Material Number
8606120

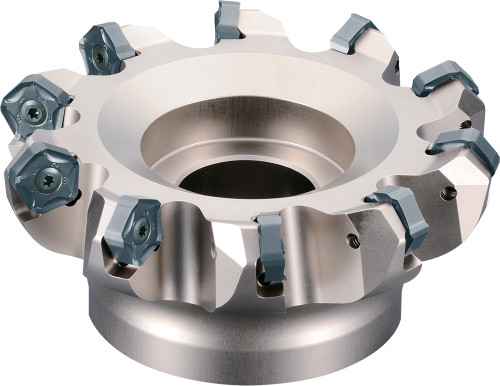

ANSI Part Number
MFPN455000R13T
ISO Part Number
MFPN455000R-13T
Material Group / Grade
GR99
Cutting Diameter Minimum (Decimal)
5
Max. Depth Of Cut
0.24 Inch
Maximum Depth of Cut (Decimal)
0.24(GM/SM/GH), 0.20 (GL), 0.12 (W)
Maximum Depth of Cut (Metric)
6 (GM/SM/GH), 5 (GL), 3 (W)
Cutting Diameter Minimum (Metric)
127
Cutting Maximum (Metric)
135
Connection Bore Diameter (Decimal)
1.50
Connection Bore Diameter (Metric)
38.10
Contact Surface Diameter Machine Side (Decimal)
3.43
Contact Surface Diameter Machine Side (Metric)
87
Tool Entering Angle
45 degrees
Cutter Pitch
Extra-Fine Pitch
