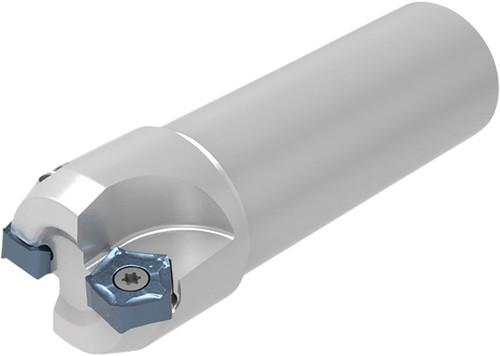

Kyocera MFPN 66032RS322TG Standard Length Shank, 66 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08384
$544.06
Kyocera MFPN 66032RS322TG Standard Length, Cylindrical Shank, 2 Flute, 66 Degree End Mill with a 32.00mm Cutting Diameter for Facing Applications

Specifications

Series
MFPN
Unit of Measure
Metric
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.2598 - 1.5551
Cutting Diameter (Metric)
32 - 39.50
Weldon Flat
No
Cutting Diameter
39.50 mm
Number of Flutes
2
Application
Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8858702
ANSI Part Number
MFPN66032RS322TG
ISO Part Number
MFPN66032R-S32-2T-G
Material Group / Grade
GR99
Tool Style
MFPN
Cutting Diameter Minimum (Decimal)
1.26
Number of Inserts
2
Hand of Holder
Right
Max. Depth Of Cut
5 mm
Maximum Depth of Cut (Decimal)
0.20
Cutting Diameter Minimum (Metric)
32
Cutting Maximum (Decimal)
1.56
Connection Diameter (Decimal)
1.26
Connection Diameter (Metric)
32
Tool Entering Angle
66 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN66_Milling_Series.pdf
