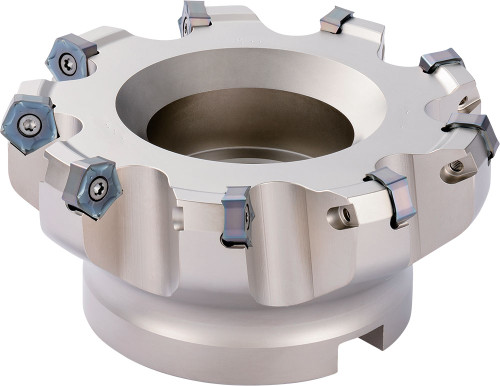

Kyocera MFPN 66100R7TG Inch Bore Diameter, 66 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08387
$1,209.19
Kyocera MFPN 66100R7TG Inch Bore Diameter, Fine Pitch, 7 Flute, 66 Degree Face Mill with a 100.00mm Cutting Diameter for Facing Applications

Specifications

Series
MFPN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
3.9370 - 4.2126
Cutting Diameter (Metric)
100 - 107
Cutting Diameter
107 mm
Number of Flutes
7
Application
Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8858705
ANSI Part Number
MFPN66100R7TG
ISO Part Number
MFPN66100R-7T-G
Material Group / Grade
GR99
Tool Style
MFPN
Cutting Diameter Minimum (Decimal)
3.94
Number of Inserts
7
Hand of Holder
Right
Max. Depth Of Cut
6 mm
Maximum Depth of Cut (Decimal)
0.24
Cutting Diameter Minimum (Metric)
100
Cutting Maximum (Decimal)
4.21
Connection Bore Diameter (Decimal)
1.25
Connection Bore Diameter (Metric)
31.75
Contact Surface Diameter Machine Side (Decimal)
3.07
Contact Surface Diameter Machine Side (Metric)
78
Tool Entering Angle
66 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN66_Milling_Series.pdf
