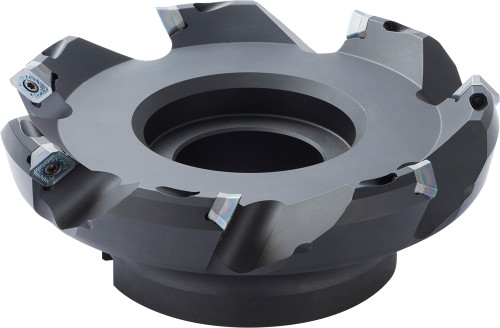

Kyocera MFSE 45125R6T Inch Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08586
$1,567.39
Kyocera MFSE 45125R6T Inch Bore Diameter, Coarse Pitch, 6 Flute, 45 Degree Face Mill with a 125.00mm Cutting Diameter for Facing, Chamfering Applications

Specifications

Series
MFSE
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
4.9213 - 5.2638
Cutting Diameter (Metric)
125 - 133.70
Cutting Diameter
133.70 mm
Number of Flutes
6
Application
Chamfering, Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8867132
ANSI Part Number
MFSE45125R6T
ISO Part Number
MFSE45125R-6T
Material Group / Grade
GR99
Tool Style
MFSE
Cutting Diameter Minimum (Decimal)
4.92
Number of Inserts
6
Hand of Holder
Right
Max. Depth Of Cut
6 mm
Maximum Depth of Cut (Decimal)
0.24
Cutting Diameter Minimum (Metric)
125
Cutting Maximum (Decimal)
5.26
Connection Bore Diameter (Decimal)
1.50
Connection Bore Diameter (Metric)
38.10
Contact Surface Diameter Machine Side (Decimal)
3.50
Contact Surface Diameter Machine Side (Metric)
89
Tool Entering Angle
45 degrees
Cutter Pitch
Coarse Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFSE45.pdf
