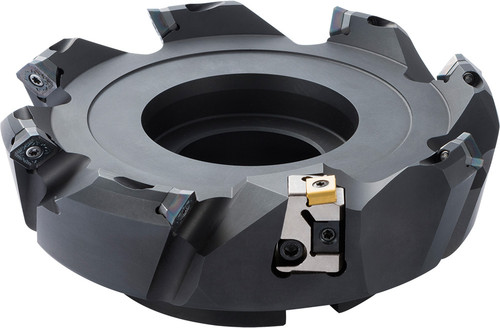

Kyocera MFSE 45160R8TW Inch Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08593
$2,602.18
Kyocera MFSE 45160R8TW Inch Bore Diameter, Coarse Pitch, 8 Flute, 45 Degree Face Mill with a 160.00mm Cutting Diameter and Wiper Pocket for Facing, Chamfering Applications

Specifications

Series
MFSE
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
6.2992 - 6.6417
Cutting Diameter (Metric)
160 - 168.70
Cutting Diameter
168.70 mm
Number of Flutes
8
Application
Chamfering, Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8867139
ANSI Part Number
MFSE45160R8TW
ISO Part Number
MFSE45160R-8T-W
Material Group / Grade
GR99
Tool Style
MFSE
Cutting Diameter Minimum (Decimal)
6.30
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
6 mm
Maximum Depth of Cut (Decimal)
0.24
Cutting Diameter Minimum (Metric)
160
Cutting Maximum (Decimal)
6.64
Connection Bore Diameter (Decimal)
2
Connection Bore Diameter (Metric)
50.80
Contact Surface Diameter Machine Side (Decimal)
4.02
Contact Surface Diameter Machine Side (Metric)
102
Tool Entering Angle
45 degrees
Cutter Pitch
Coarse Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFSE45.pdf
