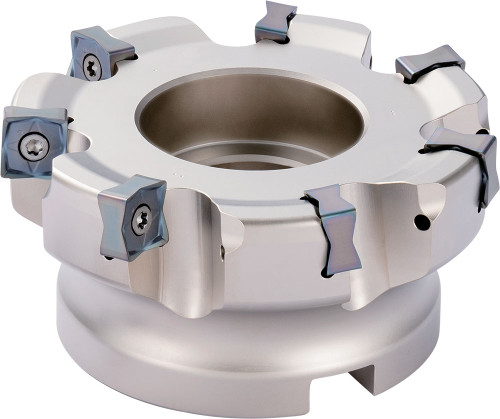

Kyocera MFSN 88160R15TMG Metric Bore Diameter, 88 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08427
$2,379.62
Kyocera MFSN 88160R15TMG Metric Bore Diameter, Extra-Fine Pitch, 15 Flute, 88 Degree Face Mill with a 160.00mm Cutting Diameter for Facing Applications

Specifications

Series
MFSN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
6.30 - 6.38
Cutting Diameter (Metric)
160 - 162
Cutting Diameter
162 mm
Number of Flutes
15
Application
Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8858755
ANSI Part Number
MFSN88160R15TMG
ISO Part Number
MFSN88160R-15T-M-G
Material Group / Grade
GR99
Tool Style
MFSN
Cutting Diameter Minimum (Decimal)
6.30
Number of Inserts
15
Hand of Holder
Right
Max. Depth Of Cut
5 mm
Maximum Depth of Cut (Decimal)
0.20
Cutting Diameter Minimum (Metric)
160
Cutting Maximum (Decimal)
6.38
Connection Bore Diameter (Decimal)
1.57
Connection Bore Diameter (Metric)
40
Contact Surface Diameter Machine Side (Decimal)
4.33
Contact Surface Diameter Machine Side (Metric)
110
Tool Entering Angle
88 degrees
Cutter Pitch
Extra-Fine Pitch
Kyocera MFSN 88160R15TMG Metric Bore Diameter, 88 Degree Face Mill
$2,379.62
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
