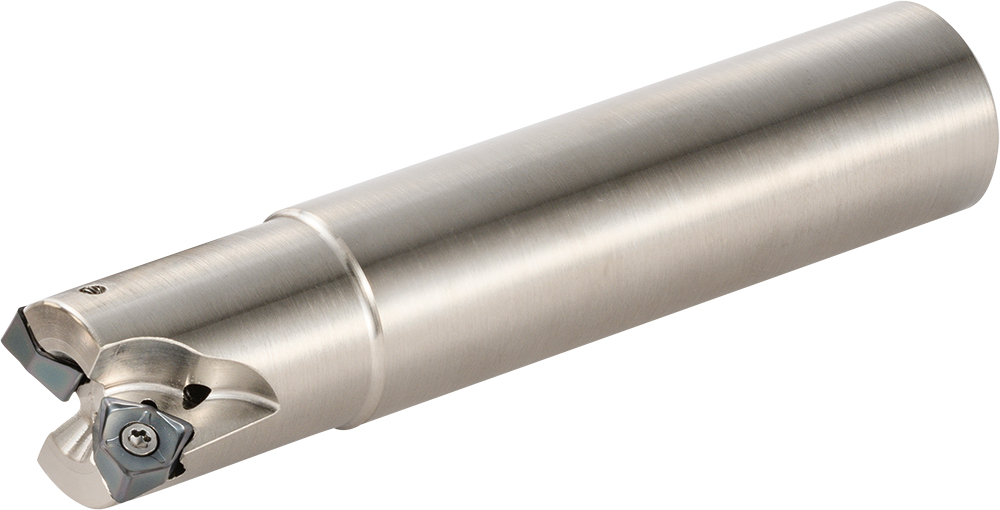

Kyocera MFWN 90040R S32 05 4T, Standard Length, MFWN-Mini End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08533
$608.69
Kyocera MFWN 90040R S32 05 4T, Standard Length, MFWN-Mini End Mill with a 40.00mm Cutting Diameter and 4 Flutes for Shouldering, Slotting, Facing, and Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Metric
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.57
Cutting Diameter (Metric)
40
Weldon Flat
No
Cutting Diameter
40 mm
Number of Flutes
4
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8865626
ANSI Part Number
MFWN90040RS32054T
ISO Part Number
MFWN90040R-S32-05-4T
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
1.57
Number of Inserts
4
Hand of Holder
Neutral
Max. Depth Of Cut
5 mm
Maximum Depth of Cut (Decimal)
0.20
Cutting Diameter Minimum (Metric)
40
Cutting Maximum (Decimal)
1.57
Connection Diameter (Decimal)
1.26
Connection Diameter (Metric)
32
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
