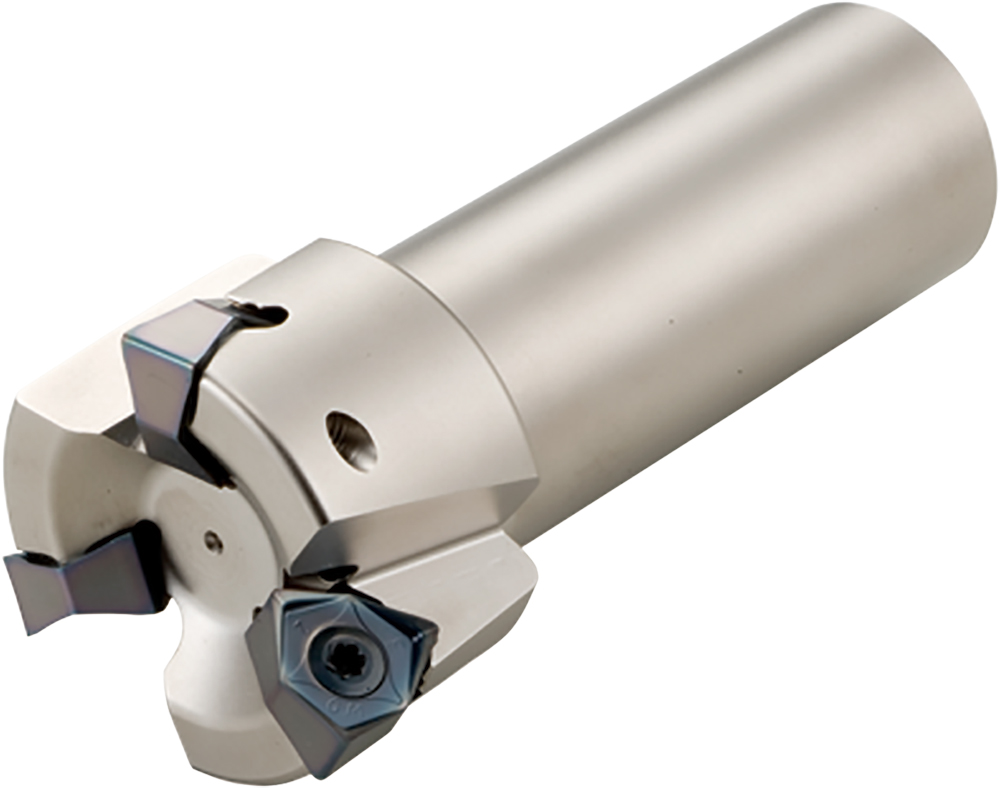

Kyocera MFWN 90080RS325T Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04652
$779.30
Kyocera MFWN 90080RS325T Standard Length, Cylindrical Shank, 5 Flute, 90 Degree End Mill with a 80.00mm Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Metric
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
3.15
Cutting Diameter (Metric)
80
Weldon Flat
No
Cutting Diameter
80 mm
Number of Flutes
5
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8835691
ANSI Part Number
MFWN90080RS325T
ISO Part Number
MFWN90080R-S32-5T
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
3.15
Number of Inserts
5
Hand of Holder
Right
Max. Depth Of Cut
8 mm
Maximum Depth of Cut (Decimal)
0.32
Cutting Diameter Minimum (Metric)
80
Cutting Maximum (Decimal)
3.15
Connection Diameter (Decimal)
1.26
Connection Diameter (Metric)
32
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
