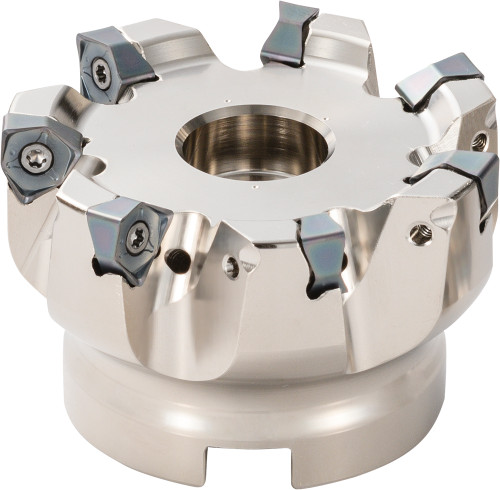

Kyocera MFWN 90125R0514TM Metric Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08530
$1,673.90
Kyocera MFWN 90125R0514TM Metric Bore Diameter, Extra-Fine Pitch, 14 Flute, 90 Degree Face Mill with a 125.00mm Cutting Diameter for Shouldering, Slotting, Facing, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
4.92
Cutting Diameter (Metric)
125
Cutting Diameter
125 mm
Number of Flutes
14
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8865623
ANSI Part Number
MFWN90125R0514TM
ISO Part Number
MFWN90125R-05-14T-M
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
4.92
Number of Inserts
14
Hand of Holder
Right
Max. Depth Of Cut
5 mm
Maximum Depth of Cut (Decimal)
0.20
Cutting Diameter Minimum (Metric)
125
Cutting Maximum (Decimal)
4.92
Connection Bore Diameter (Decimal)
1.57
Connection Bore Diameter (Metric)
40
Contact Surface Diameter Machine Side (Decimal)
3.50
Contact Surface Diameter Machine Side (Metric)
89
Tool Entering Angle
90 degrees
Cutter Pitch
Extra-Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
