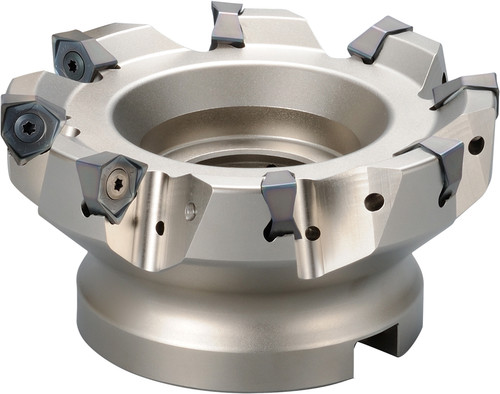

Kyocera MFWN 90200R12TM Metric Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04705
$2,581.34
Kyocera MFWN 90200R12TM Metric Bore Diameter, Fine Pitch, 12 Flute, 90 Degree Face Mill with a 200.00mm Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
7.87
Cutting Diameter (Metric)
200
Cutting Diameter
200 mm
Number of Flutes
12
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8835722
ANSI Part Number
MFWN90200R12TM
ISO Part Number
MFWN90200R-12T-M
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
7.87
Number of Inserts
12
Hand of Holder
Right
Max. Depth Of Cut
8 mm
Maximum Depth of Cut (Decimal)
0.32
Cutting Diameter Minimum (Metric)
200
Cutting Maximum (Decimal)
7.87
Connection Bore Diameter (Decimal)
2.36
Connection Bore Diameter (Metric)
60
Contact Surface Diameter Machine Side (Decimal)
5.59
Contact Surface Diameter Machine Side (Metric)
142
Tool Entering Angle
90 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
