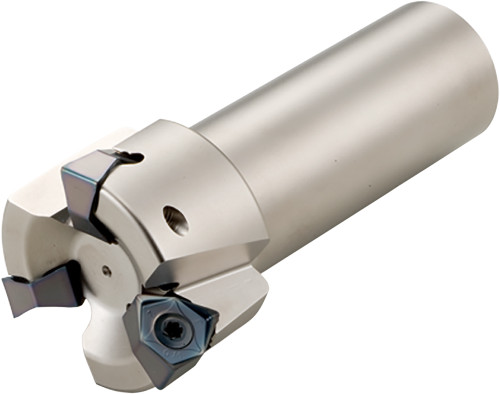

Kyocera MFWN 902500RW1254T Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04721
$682.83
Kyocera MFWN 902500RW1254T Standard Length, Weldon Shank, 4 Flute, 90 Degree End Mill with a 2.5000" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
2.50
Cutting Diameter (Metric)
63.50
Weldon Flat
Yes
Cutting Diameter
2.50 Inch
Number of Flutes
4
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8606146
ANSI Part Number
MFWN902500RW1254T
ISO Part Number
MFWN902500R-W125-4T
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
2.50
Number of Inserts
4
Hand of Holder
Right
Max. Depth Of Cut
0.32 Inch
Maximum Depth of Cut (Metric)
8
Cutting Diameter Minimum (Metric)
63.50
Cutting Maximum (Metric)
63.50
Connection Diameter (Decimal)
1.25
Connection Diameter (Metric)
31.75
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
Kyocera MFWN 902500RW1254T Standard Length Shank, 90 Degree End Mill
$682.83
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
