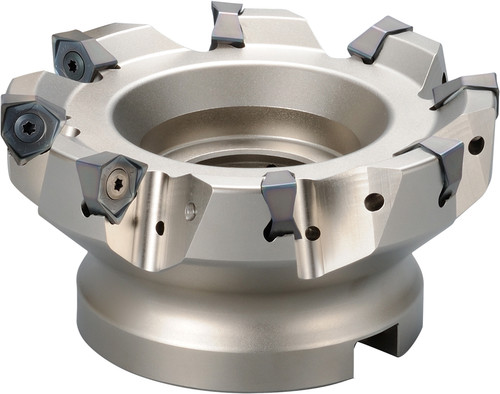

Kyocera MFWN 903000R5T Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04736
$970.67
Kyocera MFWN 903000R5T Inch Bore Diameter, Fine Pitch, 5 Flute, 90 Degree Face Mill with a 3.0000" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
3
Cutting Diameter (Metric)
76.20
Cutting Diameter
3 Inch
Number of Flutes
5
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8606132
ANSI Part Number
MFWN903000R5T
ISO Part Number
MFWN903000R-5T
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
3
Number of Inserts
5
Hand of Holder
Right
Max. Depth Of Cut
0.32 Inch
Maximum Depth of Cut (Metric)
8
Cutting Diameter Minimum (Metric)
76.20
Cutting Maximum (Metric)
76.20
Connection Bore Diameter (Decimal)
1
Connection Bore Diameter (Metric)
25.40
Contact Surface Diameter Machine Side (Decimal)
2.28
Contact Surface Diameter Machine Side (Metric)
58
Tool Entering Angle
90 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
