Kyocera MFWN 905000R8T Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04738
$1,520.31

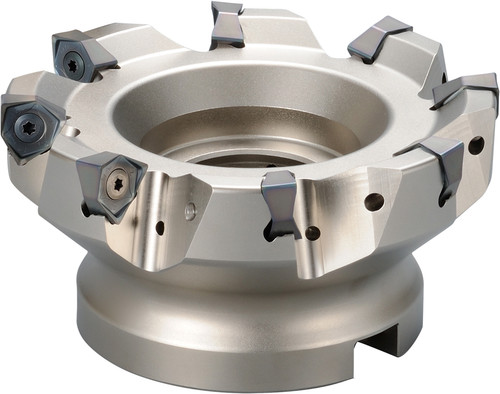

Kyocera MFWN 905000R8T Inch Bore Diameter, Fine Pitch, 8 Flute, 90 Degree Face Mill with a 5.0000" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
5
Cutting Diameter (Metric)
127
Cutting Diameter
5 Inch
Number of Flutes
8
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8606134
ANSI Part Number
MFWN905000R8T
ISO Part Number
MFWN905000R-8T
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
5
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
0.32 Inch
Maximum Depth of Cut (Metric)
8
Cutting Diameter Minimum (Metric)
127
Cutting Maximum (Metric)
127
Connection Bore Diameter (Decimal)
1.50
Connection Bore Diameter (Metric)
38.10
Contact Surface Diameter Machine Side (Decimal)
3.43
Contact Surface Diameter Machine Side (Metric)
87
Tool Entering Angle
90 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
