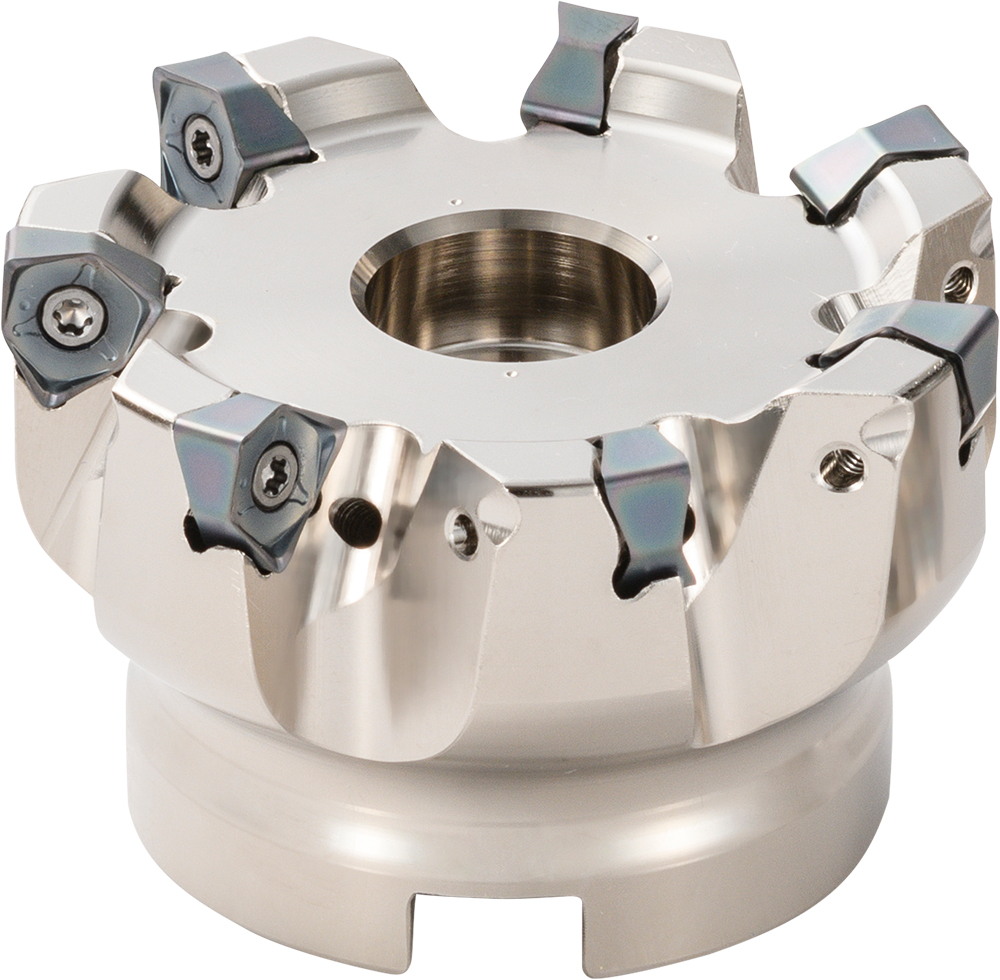

Kyocera MFWN90100R 05 11T M Metric Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08529
$1,179.33
Kyocera MFWN90100R 05 11T M Metric Bore Diameter, Extra-Fine Pitch, 11 Flute, 90 Degree Face Mill with a 100.00mm Cutting Diameter for Shouldering, Slotting, Facing, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
3.94
Cutting Diameter (Metric)
100
Cutting Diameter
100 mm
Number of Flutes
11
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8865622
ANSI Part Number
MFWN90100R0511TM
ISO Part Number
MFWN90100R-05-11T-M
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
3.94
Number of Inserts
11
Hand of Holder
Right
Max. Depth Of Cut
5 mm
Maximum Depth of Cut (Decimal)
0.20
Cutting Diameter Minimum (Metric)
100
Cutting Maximum (Decimal)
3.94
Connection Bore Diameter (Decimal)
1.26
Connection Bore Diameter (Metric)
32
Contact Surface Diameter Machine Side (Decimal)
3.07
Contact Surface Diameter Machine Side (Metric)
78
Tool Entering Angle
90 degrees
Cutter Pitch
Extra-Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
