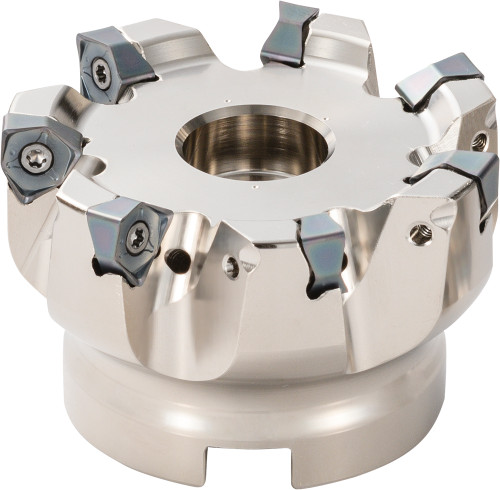

Kyocera MFWN90100R 05 8T Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08516
$1,034.77
Kyocera MFWN90100R 05 8T Inch Bore Diameter, Course Pitch, 8 Flute, 90 Degree Face Mill with a 3.9370" Cutting Diameter for Shouldering, Slotting, Facing, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
3.94
Cutting Diameter (Metric)
100
Cutting Diameter
3.94 Inch
Number of Flutes
8
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8865609
ANSI Part Number
MFWN90100R058T
ISO Part Number
MFWN90100R-05-8T
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
3.94
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
0.20 Inch
Maximum Depth of Cut (Metric)
5
Cutting Diameter Minimum (Metric)
100
Cutting Maximum (Metric)
100
Connection Bore Diameter (Decimal)
1.25
Connection Bore Diameter (Metric)
31.75
Contact Surface Diameter Machine Side (Decimal)
3.07
Contact Surface Diameter Machine Side (Metric)
78
Tool Entering Angle
90 degrees
Cutter Pitch
Coarse Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
