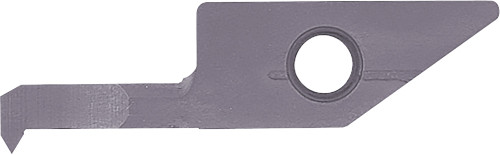

Kyocera Micro VNTR 04511 PR930 Grade PVD Carbide, Micro Threading Bar

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT09420
$84.58
Kyocera Micro VNTR 04511 PR930 Grade PVD Carbide, Micro Threading Bar with a 4.50mm Minimum Bore Diameter for (P) Steel, (M) Stainless Steel

Specifications

Series
SWIQ
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(P) Steel
Style
VNT
Application
Micro Internal Threading
Insert Holding Method
Screw
Thread Type
Internal
Old Material Number
8803896
ANSI Part Number
VNTR04511PR930
ISO Part Number
VNTR045-11
Shank Height (Decimal)
0.15
Min. Bore Diameter
4.50 mm
Minimum Bore Diameter (Decimal)
0.18
Usable Length (Decimal)
0.43
Usable Length (Metric)
11
Corner Radius (Metric)
0.05
Coating Process
PVD
Corner Radius
0.002
Shank Height
3.90 mm
Insert Grade
PR930
Pack quantity
5
Kyocera Micro VNTR 04511 PR930 Grade PVD Carbide, Micro Threading Bar
$84.58
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
