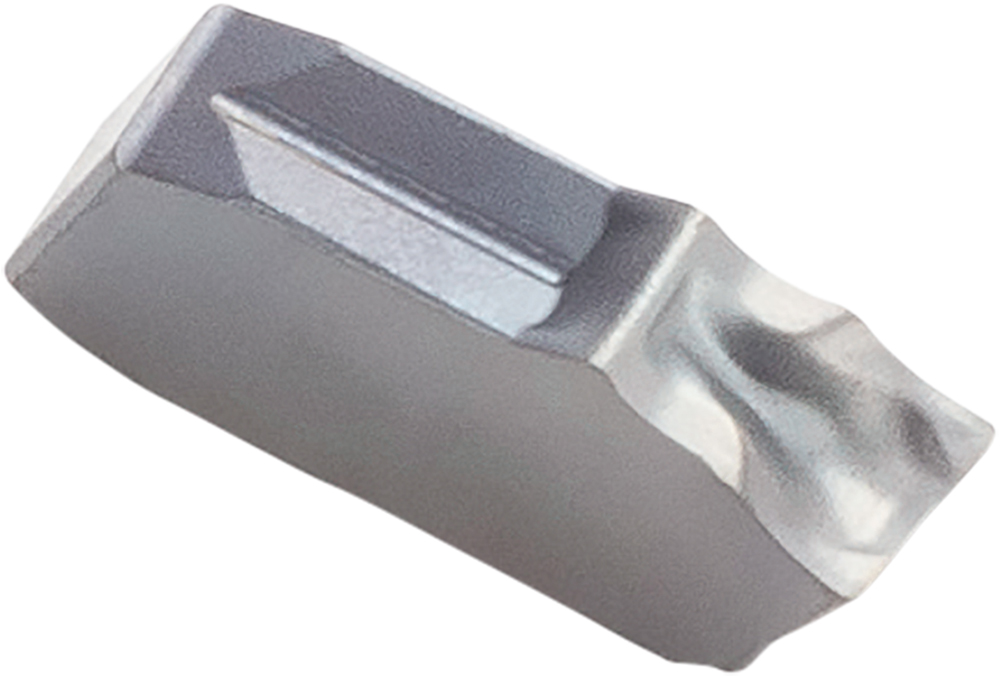

Kyocera PKM 16L015PM6D PR1625 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLL40015
$31.96
Kyocera PKM 16L015PM6D PR1625 Grade PVD Carbide, 1.60mm Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel and (M) Stainless Steel Material Applications

Specifications

Series
KPK
Unit of Measure
Imperial
Cutting Direction
Left
Material
Carbide
Primary Workpiece Material
(P) Carbon/Alloy Steel
Cutting Width
0.06 Inch
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8867782
ANSI Part Number
PKM16L015PM6DPR1625
ISO Part Number
PKM16L-015PM-6D
Rake
Positive
Material Group / Grade
PR1625
Tool Style
PKM
Cutting Width (Decimal)
0.06
Cutting Width (Metric)
1.60
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.60
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.60
Corner Radius (Metric)
0.15
Number of Cutting Edges
1
Insert Size
16
Corner Radius (Decimal)
0.01
Chipbreaker
PM
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KPK-Series_Cut-Off_Solutions.pdf
Kyocera PKM 16L015PM6D PR1625 Grade PVD Carbide, Indexable Cut-Off Insert
$31.96
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
