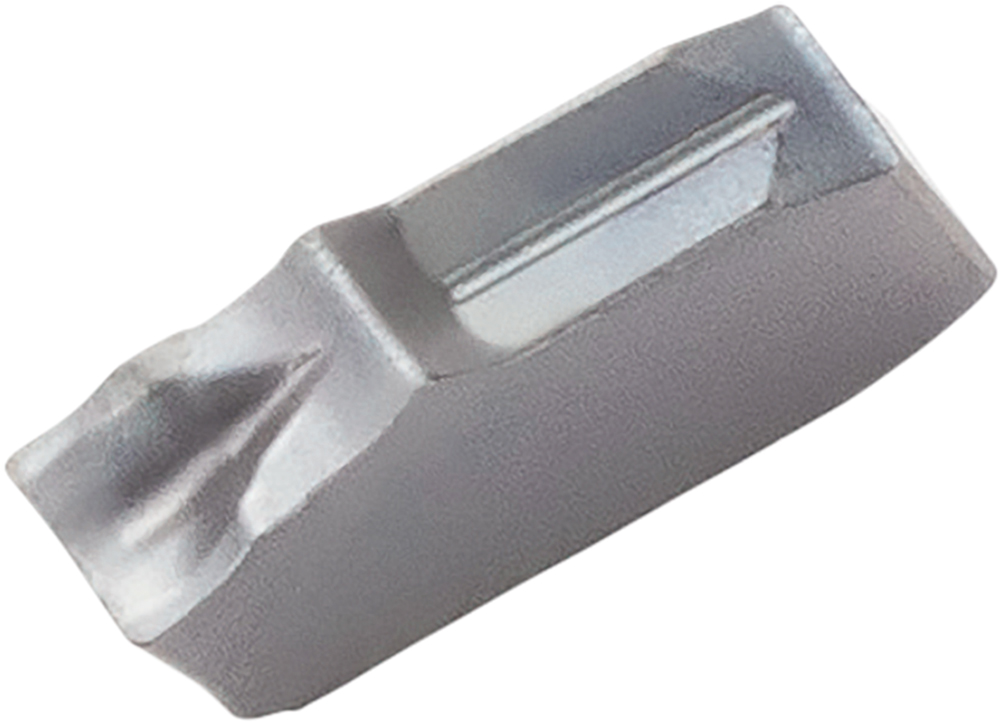

Kyocera PKM 30N025PM PR1625 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLL40002
$31.96
Kyocera PKM 30N025PM PR1625 Grade PVD Carbide, 0.1180" Cutting Width, Neutral Cut-Off Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel and (M) Stainless Steel Material Applications

Specifications

Series
KPK
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
Carbide
Primary Workpiece Material
(P) Carbon/Alloy Steel
Cutting Width
0.12 Inch
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8865556
ANSI Part Number
PKM30N025PMPR1625
ISO Part Number
PKM30N-025PM
Rake
Positive
Material Group / Grade
PR1625
Tool Style
PKM
Cutting Width (Decimal)
0.12
Cutting Width (Metric)
3
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Corner Radius (Metric)
0.25
Number of Cutting Edges
1
Insert Size
30
Corner Radius (Decimal)
0.01
Chipbreaker
PM
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KPK-Series_Cut-Off_Solutions.pdf
