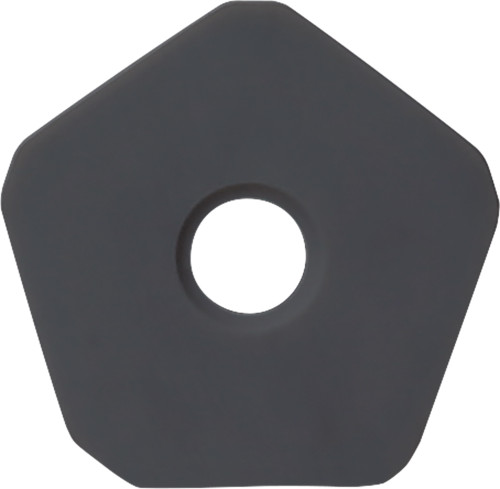

Kyocera PNEA 1106XNTNT01020 KS6050 Grade Ceramic, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCX05280
$34.28
Kyocera PNEA 1106XNTNT01020 KS6050 Grade Ceramic, Pentagon, Negative Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron and (K) Nodular Cast Iron

Specifications

Series
MFK
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Gray Cast Iron
Grade
KS6050
Thickness
6.50 mm
Style
PNEA
Application
Chamfering, Facing
Thickness (Decimal)
0.26
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.67
Insert Length (Metric)
16.94
Old Material Number
8843949
ANSI Part Number
PNEA1106XNTNT01020KS6050
ISO Part Number
PNEA1106XNTN-T01020
Rake
Negative
Number of Cutting Edges
10
Insert Size
1106
Chipbreaker
XNTN
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFK_Cast_Iron_Milling_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/MFK-SF.pdf
