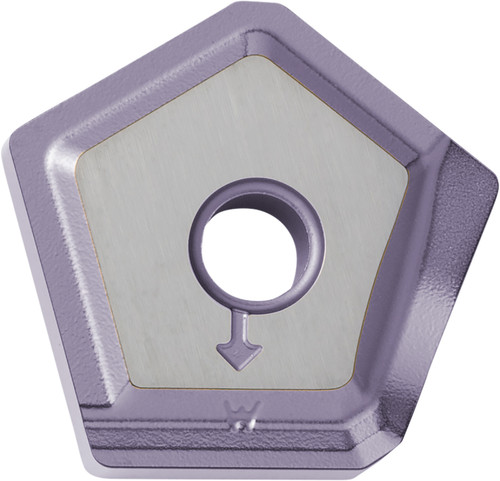

Kyocera PNEG 1106XNERW PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00112
$49.47
Kyocera PNEG 1106XNERW PR1825 Grade PVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Finishing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFK
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
PR1825
Thickness
6.35 mm
Style
PNEG
Application
Chamfering, Facing
Thickness (Fractional)
1/4
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.71
Insert Length (Metric)
18.02
ANSI Part Number
PNEG1106XNERWPR1825
ISO Part Number
PNEG1106XNER-W
Rake
Negative
Number of Cutting Edges
2
Insert Size
1106
Chipbreaker
XNER-W
Cutting Range
Finishing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFK_Cast_Iron_Milling_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
