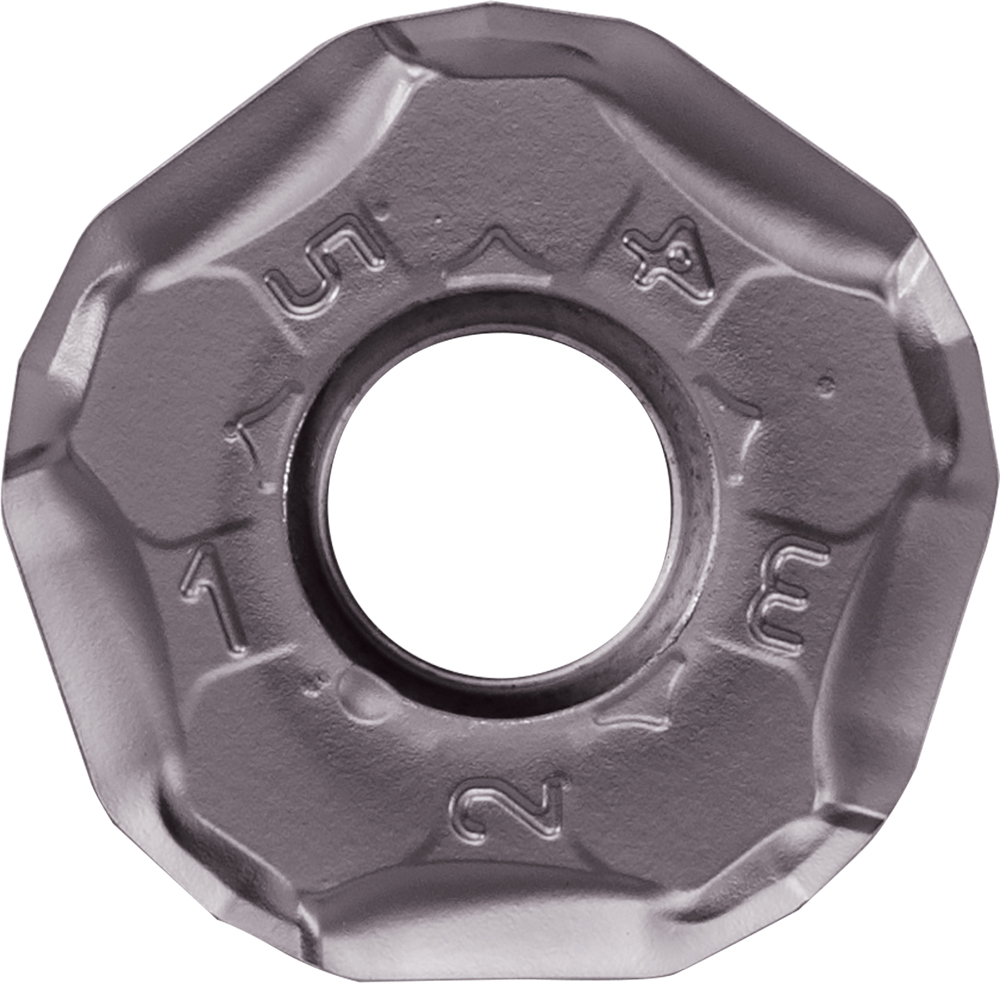

Kyocera PNEU 1205ANELGL PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00086
$47.53
Kyocera PNEU 1205ANELGL PR1810 Grade PVD Carbide, Pentagon, Negative Rake Angle, Left-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Left
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Grade
PR1810
Thickness
5.56 mm
Style
PNEU
Application
Chamfering, Facing
Thickness (Fractional)
7/32
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.69
Insert Length (Metric)
17.51
ANSI Part Number
PNEU1205ANELGLPR1810
ISO Part Number
PNEU1205ANEL-GL
Rake
Negative
Number of Cutting Edges
10
Insert Size
1205
Chipbreaker
ANEL-GL
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
