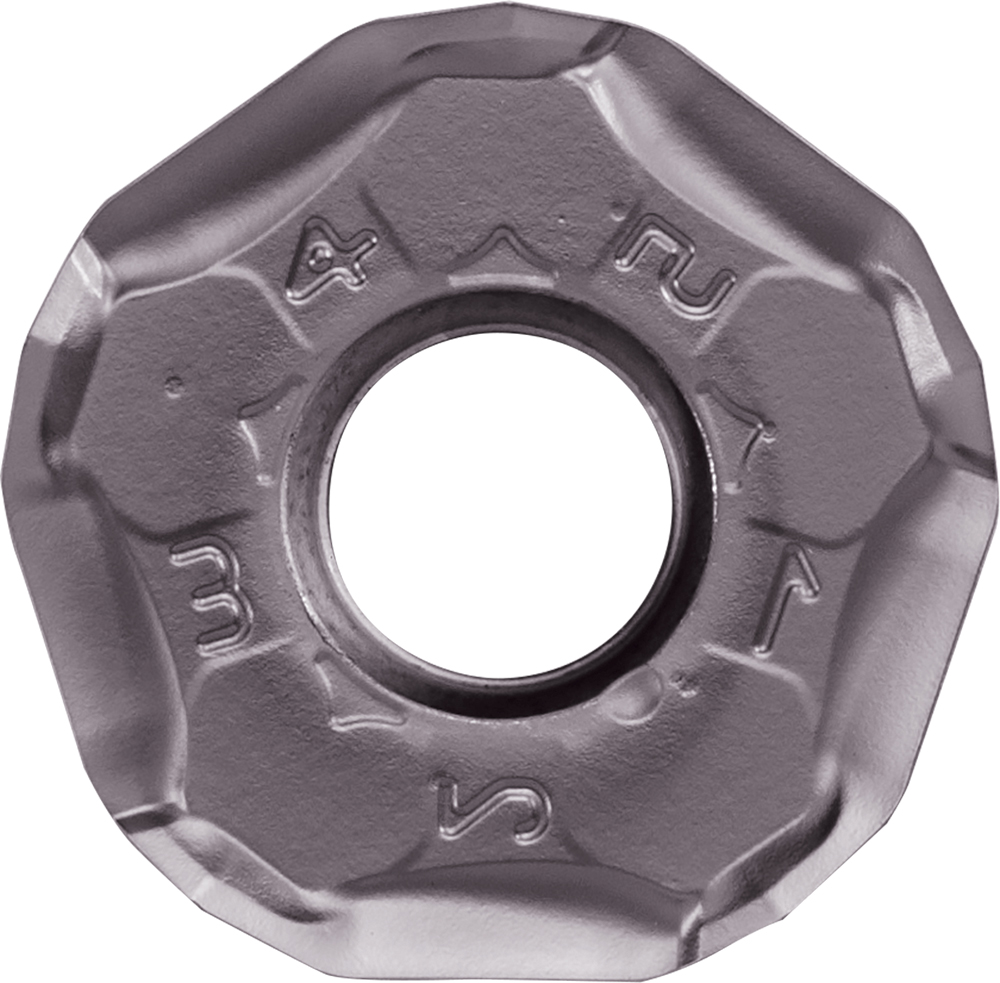

Kyocera PNEU 1205ANERW PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB05070
$55.30
Kyocera PNEU 1205ANERW PR1525 Grade PVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
PR1525
Thickness
5.56 mm
Style
PNEU
Application
Chamfering, Facing
Thickness (Fractional)
7/32
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.70
Insert Length (Metric)
17.85
Old Material Number
8837830
ANSI Part Number
PNEU1205ANERWPR1525
ISO Part Number
PNEU1205ANER-W
Rake
Negative
Number of Cutting Edges
2
Insert Size
1205
Chipbreaker
ANER-W
Cutting Range
Roughing
Pack quantity
5
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera PNEU 1205ANERW PR1525 Grade PVD Carbide, Indexable Milling Insert
$55.30
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
