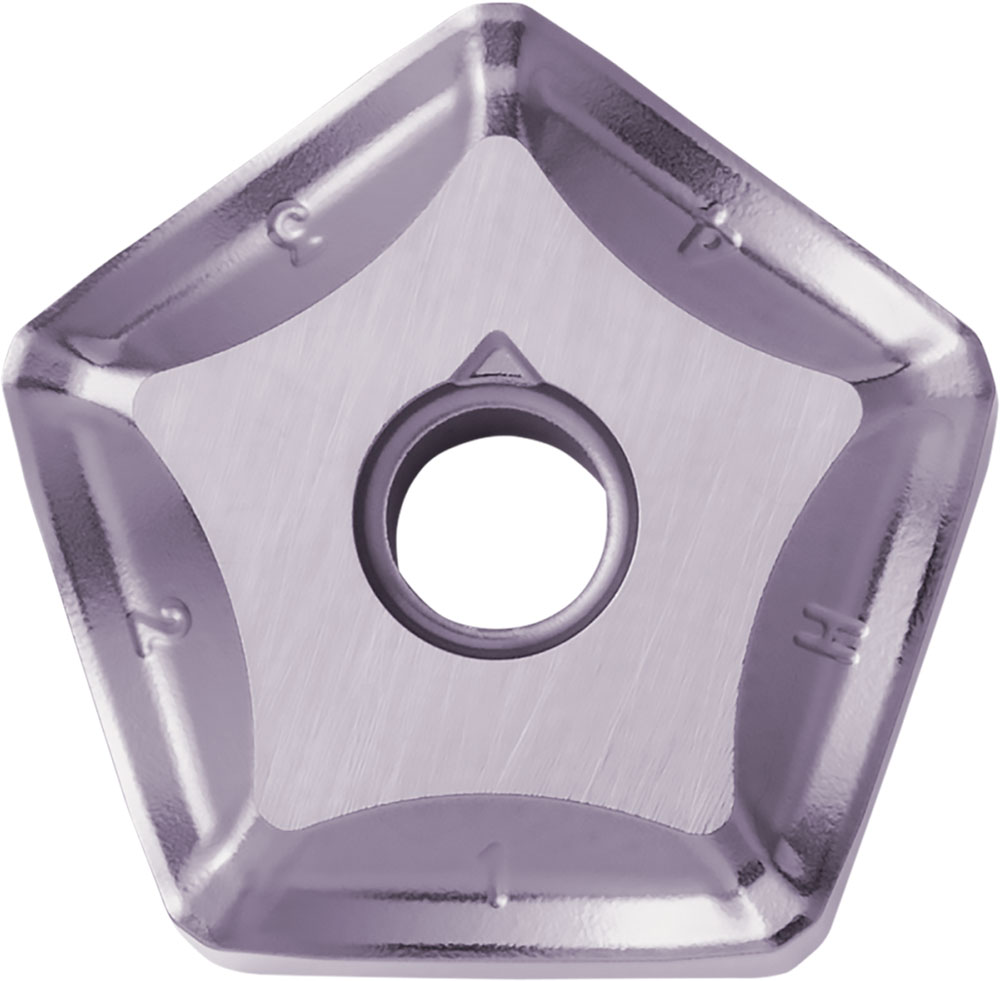

Kyocera PNMG 1106XNENGH PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00084
$34.31
Kyocera PNMG 1106XNENGH PR1810 Grade PVD Carbide, Pentagon, Negative Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MFK
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Grade
PR1810
Thickness
6.35 mm
Style
PNMG
Application
Chamfering, Facing
Thickness (Fractional)
1/4
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.68
Insert Length (Metric)
17.23
ANSI Part Number
PNMG1106XNENGHPR1810
ISO Part Number
PNMG1106XNEN-GH
Rake
Negative
Number of Cutting Edges
10
Insert Size
1106
Chipbreaker
XNEN-GH
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFK_Cast_Iron_Milling_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
