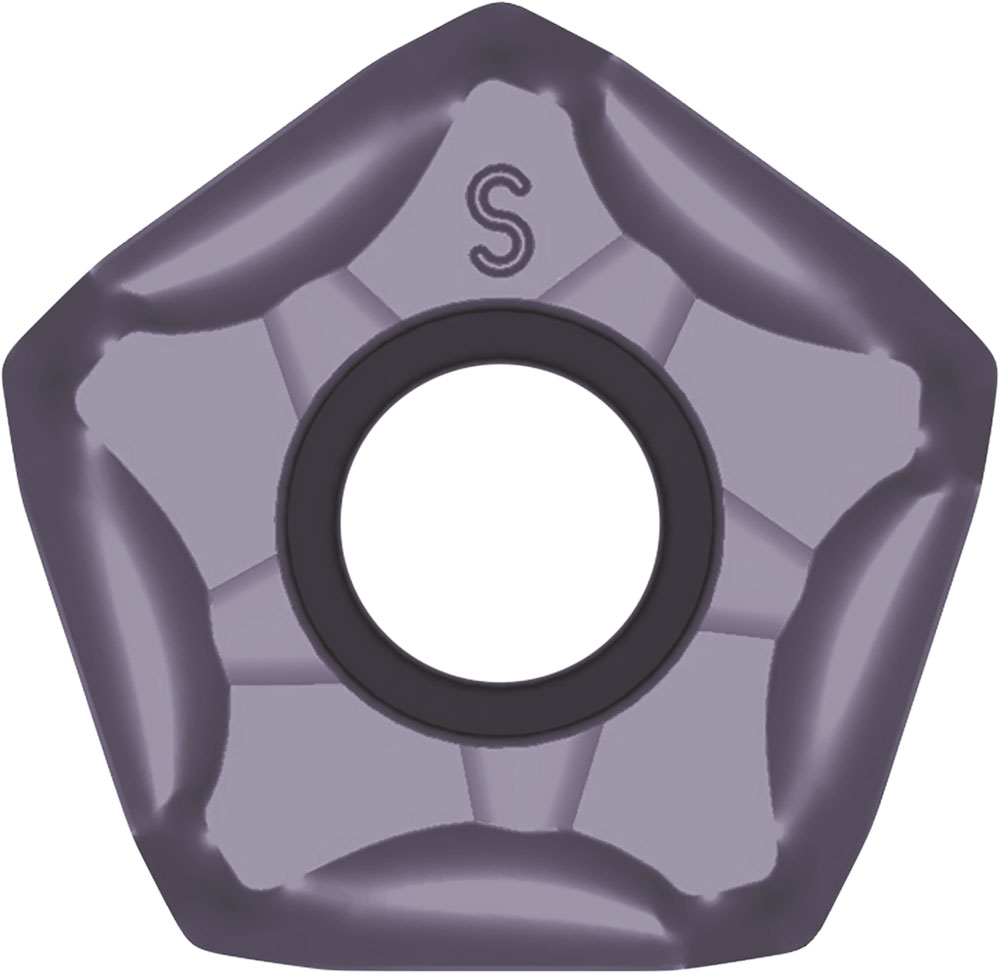

Kyocera PNMU 0905XNERSM PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00099
$32.79
Kyocera PNMU 0905XNERSM PR1810 Grade PVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Grade
PR1810
Thickness
5.56 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Fractional)
7/32
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.57
Insert Length (Metric)
14.60
ANSI Part Number
PNMU0905XNERSMPR1810
ISO Part Number
PNMU0905XNER-SM
Rake
Negative
Number of Cutting Edges
10
Insert Size
0905
Chipbreaker
XNER-SM
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN66_Milling_Series.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera PNMU 0905XNERSM PR1810 Grade PVD Carbide, Indexable Milling Insert
$32.79
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
