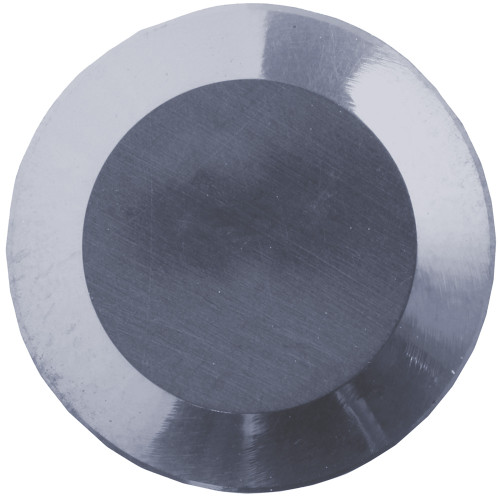

Kyocera RCGX 104T08015625AA PT600M Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCV04124
$48.72
Kyocera RCGX 104T08015625AA PT600M Grade Ceramic, 7 Degree, Round, Positive Rake Angle, Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Style
RCGX
Application
External Turning, Facing, Roll Machining, Undercutting
Shape
Round
Insert Holding Method
Clamp
Size
104/625AA
Old Material Number
8826353
ANSI Part Number
RCGX104T08015625AAPT600M
ISO Part Number
RCGX120700P20015
Rake
Positive
Material Group / Grade
PT600M
Number of Cutting Edges
n/a
Thickness (Metric)
8
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera RCGX 104T08015625AA PT600M Grade Ceramic, Indexable Turning Insert
$48.72
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
