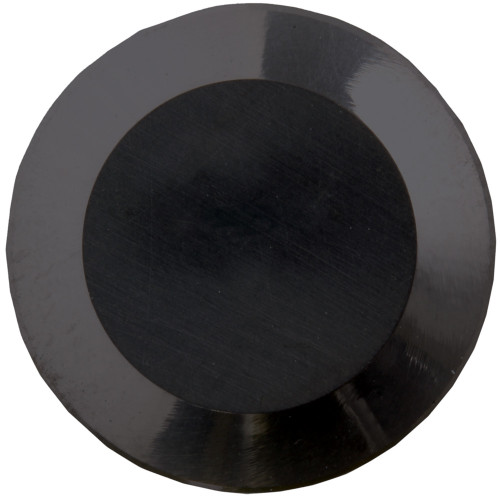

Kyocera RCGX 106T08015625AA A65 Grade Uncoated Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCR61130
$74.21
Kyocera RCGX 106T08015625AA A65 Grade Uncoated Ceramic, 7 Degree, Round, Positive Rake Angle, Turning Insert for Continuous and Finishing-Medium in (K) Gray Cast Iron, (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Gray Cast Iron|(H) Hardened Materials
Style
RCGX
Application
External Turning, Facing, Roll Machining, Undercutting
Shape
Round
Insert Holding Method
Clamp
Size
106/625AA
Old Material Number
8813081
ANSI Part Number
RCGX106T08015625AAA65
ISO Part Number
RCGX191000P20015
Rake
Positive
Material Group / Grade
A65
Number of Cutting Edges
n/a
Thickness (Metric)
10
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Inscribed Circle (Metric)
19.05
Inscribed Circle
3/4 Inch
Pack quantity
10
