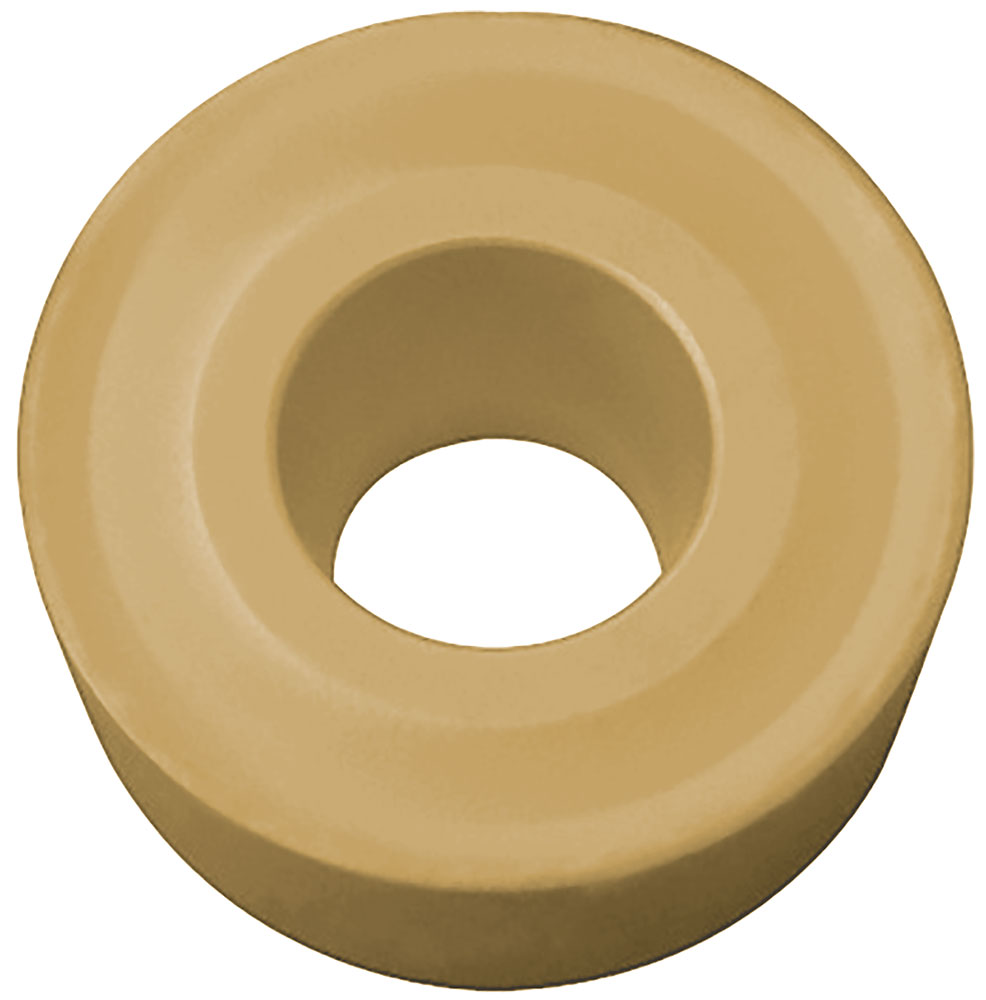

Kyocera RCMX 1003M0 CA510 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAA04400
$23.47
Kyocera RCMX 1003M0 CA510 Grade CVD Carbide, 7 Degree, Round, Positive Rake Angle, Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Style
RCMX
Application
External Turning, Facing, Undercutting
Shape
Round
Insert Holding Method
Screw or Clamp
Size
1003
Old Material Number
8840250
ANSI Part Number
RCMX1003M0CA510
ISO Part Number
RCMX1003M0
Rake
Positive
Material Group / Grade
CA510
Number of Cutting Edges
n/a
Thickness (Fractional)
1/8
Thickness (Metric)
3.18
Cutting Range
Medium
Usage Classification
Continuous
Inscribed Circle (Metric)
10
Inscribed Circle
0.39 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Kyocera RCMX 1003M0 CA510 Grade CVD Carbide, Indexable Turning Insert
$23.47
