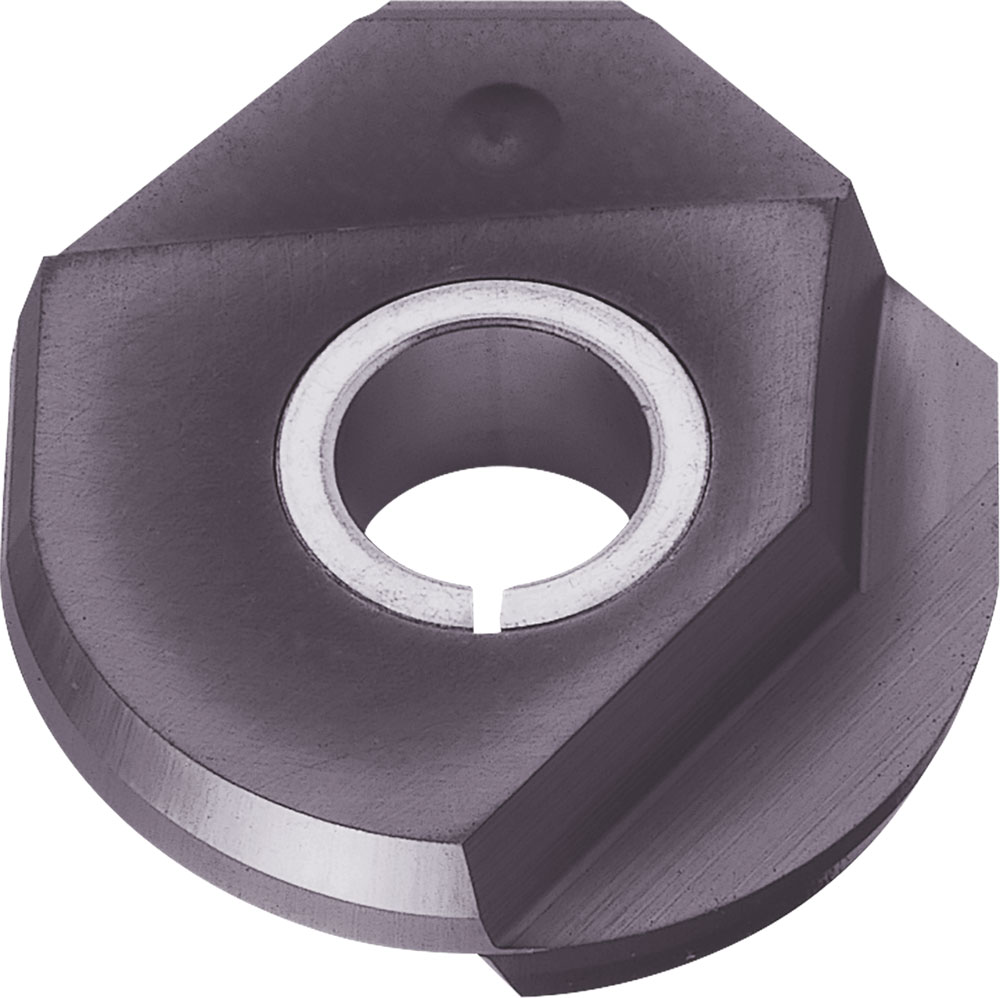

Kyocera RDFG 16FR PR915 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJG05406
$113.94
Kyocera RDFG 16FR PR915 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Stainless Steel, (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MRF
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel|(M) Stainless Steel|(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
8 mm
Grade
PR915
Thickness
4.20 mm
Style
RDFG
Application
Contouring, Pocketing, Profiling
Thickness (Decimal)
0.17
Shape
Round
Insert Holding Method
Screw
Insert Length (Decimal)
0.63
Insert Length (Metric)
16
Old Material Number
8813102
ANSI Part Number
RDFG16FRPR915
ISO Part Number
RDFG16FR
Rake
Positive
Number of Cutting Edges
2
Insert Size
16
Chipbreaker
FR
Cutting Range
Roughing
Corner Radius (Decimal)
0.32
Pack quantity
2
Kyocera RDFG 16FR PR915 Grade PVD Carbide, Indexable Milling Insert
$113.94
