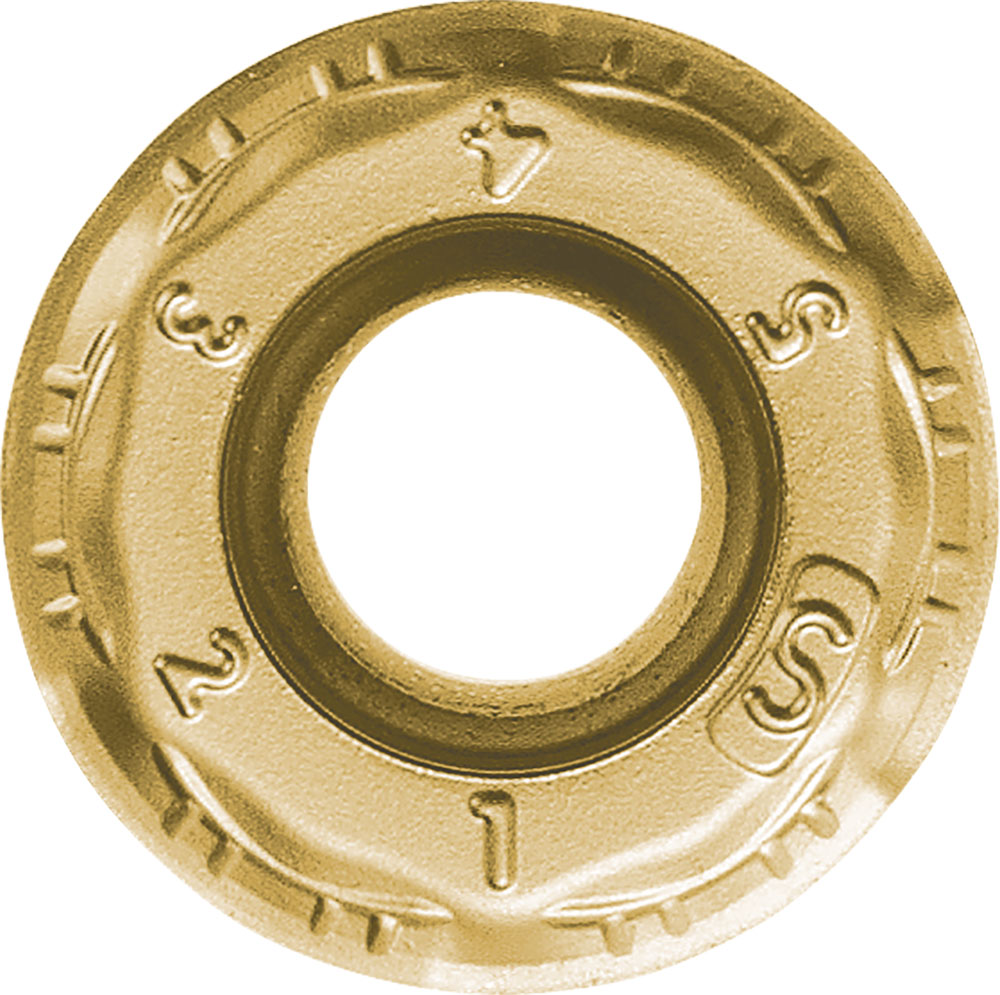

Kyocera RDGT 0803M0ERSM PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00136
$23.43
Kyocera RDGT 0803M0ERSM PR1835 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Grade
PR1835
Inscribed Circle (Metric)
8
Thickness
3.18 mm
Style
RDGT
Application
Facing, Pocketing, Profiling, Ramping, Shouldering, Slotting
Thickness (Fractional)
1/8
Shape
Round
Insert Holding Method
Screw
ANSI Part Number
RDGT0803M0ERSMPR1835
ISO Part Number
RDGT0803M0ER-SM
Rake
Positive
Number of Cutting Edges
6
Insert Size
0803
Chipbreaker
M0ER-SM
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.32
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera RDGT 0803M0ERSM PR1835 Grade PVD Carbide, Indexable Milling Insert
$23.43
