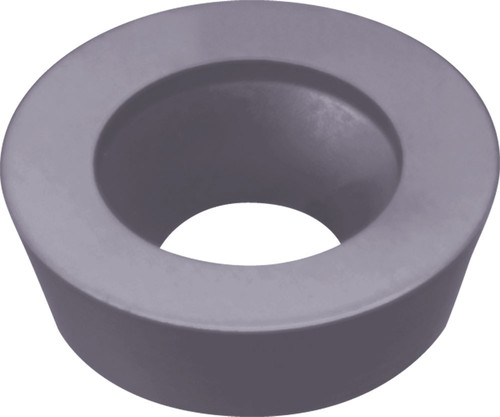

Kyocera RDHX 12T3M0T PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00175
$21.79
Kyocera RDHX 12T3M0T PR1835 Grade PVD Carbide, Round, Positive Rake Angle, Neutral Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
GPM
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Grade
PR1835
Inscribed Circle (Metric)
12
Thickness
3.97 mm
Style
RDHX
Application
Contouring, Pocketing, Profiling
Thickness (Fractional)
5/32
Shape
Round
Insert Holding Method
Screw
ANSI Part Number
RDHX12T3M0TPR1835
ISO Part Number
RDHX12T3M0T
Rake
Positive
Insert Size
12T3
Chipbreaker
M0T
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.47
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera RDHX 12T3M0T PR1835 Grade PVD Carbide, Indexable Milling Insert
$21.79
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
