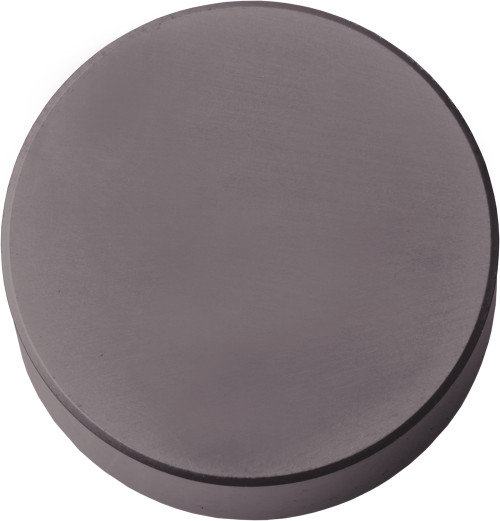

Kyocera RNG 33T00825 PT600M Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCV04322
$22.25
Kyocera RNG 33T00825 PT600M Grade Ceramic, 0 Degree, Round, Negative Rake Angle, Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Thickness
3/16 Inch
Style
RNG
Application
Copying, External Turning, Facing
Shape
Round
Insert Holding Method
Clamp
Size
33
Old Material Number
8827996
ANSI Part Number
RNG33T00825PT600M
ISO Part Number
RNGN090400T02025
Rake
Negative
Material Group / Grade
PT600M
Number of Cutting Edges
n/a
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
