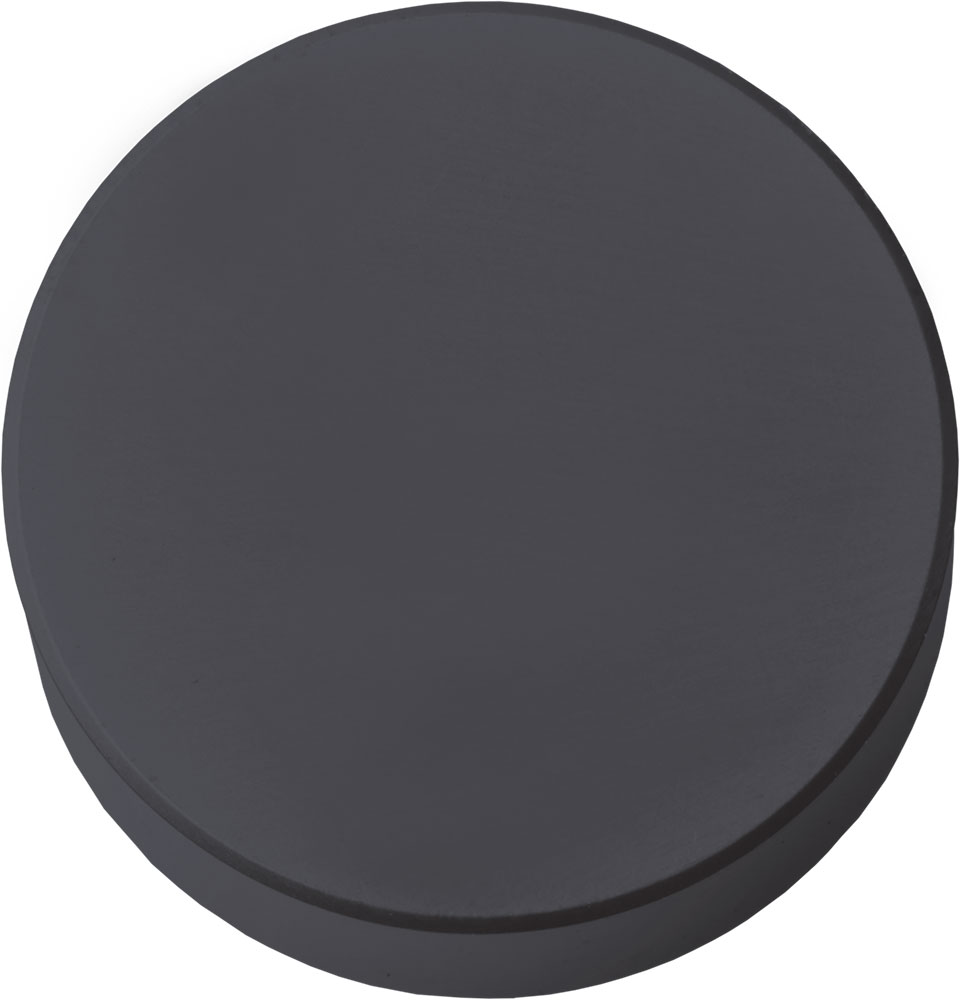

Kyocera RNG 55T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCR01070
$46.10
Kyocera RNG 55T00825 A65 Grade Uncoated Ceramic, 0 Degree, Round, Negative Rake Angle, Turning Insert for Continuous and Finishing-Medium in (K) Gray Cast Iron, (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Gray Cast Iron|(H) Hardened Materials
Thickness
5/16 Inch
Style
RNG
Application
Copying, External Turning, Facing
Shape
Round
Insert Holding Method
Clamp
Size
55
Old Material Number
8807017
ANSI Part Number
RNG55T00825A65
ISO Part Number
RNGN150700T02025
Rake
Negative
Material Group / Grade
A65
Number of Cutting Edges
n/a
Thickness (Metric)
7.94
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Inscribed Circle (Metric)
15.88
Inscribed Circle
5/8 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera RNG 55T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert
$46.10
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
