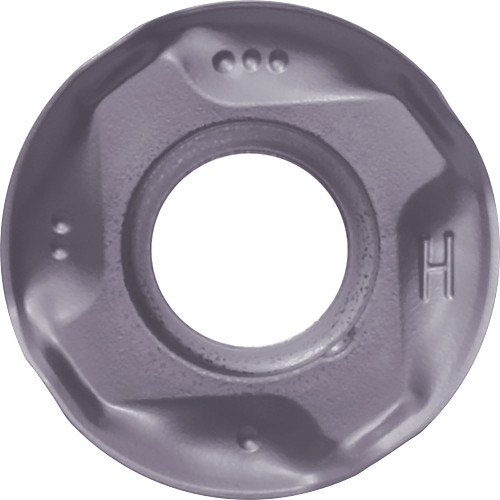

Kyocera ROMU 1605M0ERGH PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB01202
$40.23
Kyocera ROMU 1605M0ERGH PR1525 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MRW
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
PR1525
Inscribed Circle (Metric)
16
Thickness
5.48 mm
Style
ROMU
Application
Contouring, Facing, Plunging, Profiling, Shouldering
Thickness (Decimal)
0.22
Shape
Round
Insert Holding Method
Screw
Insert Length (Decimal)
0.62
Insert Length (Metric)
15.80
Old Material Number
8838367
ANSI Part Number
ROMU1605M0ERGHPR1525
ISO Part Number
ROMU1605M0ER-GH
Rake
Positive
Insert Size
1605
Chipbreaker
M0ER-GH
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.63
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-8_MRW_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
