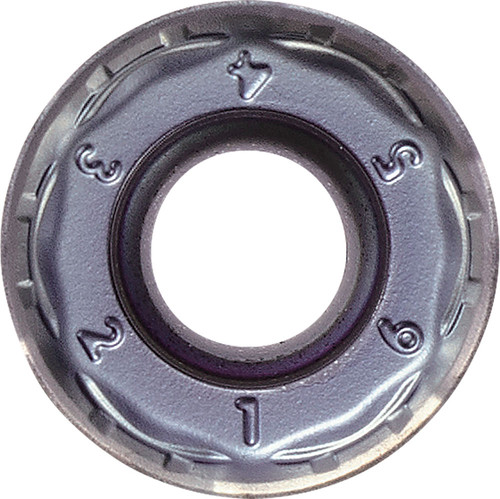

Kyocera RPGT 10T3M0ERGM PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00154
$24.41
Kyocera RPGT 10T3M0ERGM PR1825 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
PR1825
Inscribed Circle (Metric)
10
Thickness
3.97 mm
Style
RPGT
Application
Facing, Pocketing, Profiling, Ramping, Shouldering, Slotting
Thickness (Fractional)
5/32
Shape
Round
Insert Holding Method
Screw
ANSI Part Number
RPGT10T3M0ERGMPR1825
ISO Part Number
RPGT10T3M0ER-GM
Rake
Positive
Number of Cutting Edges
6
Insert Size
10T3
Chipbreaker
M0ER-GM
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.39
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera RPGT 10T3M0ERGM PR1825 Grade PVD Carbide, Indexable Milling Insert
$24.41
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
