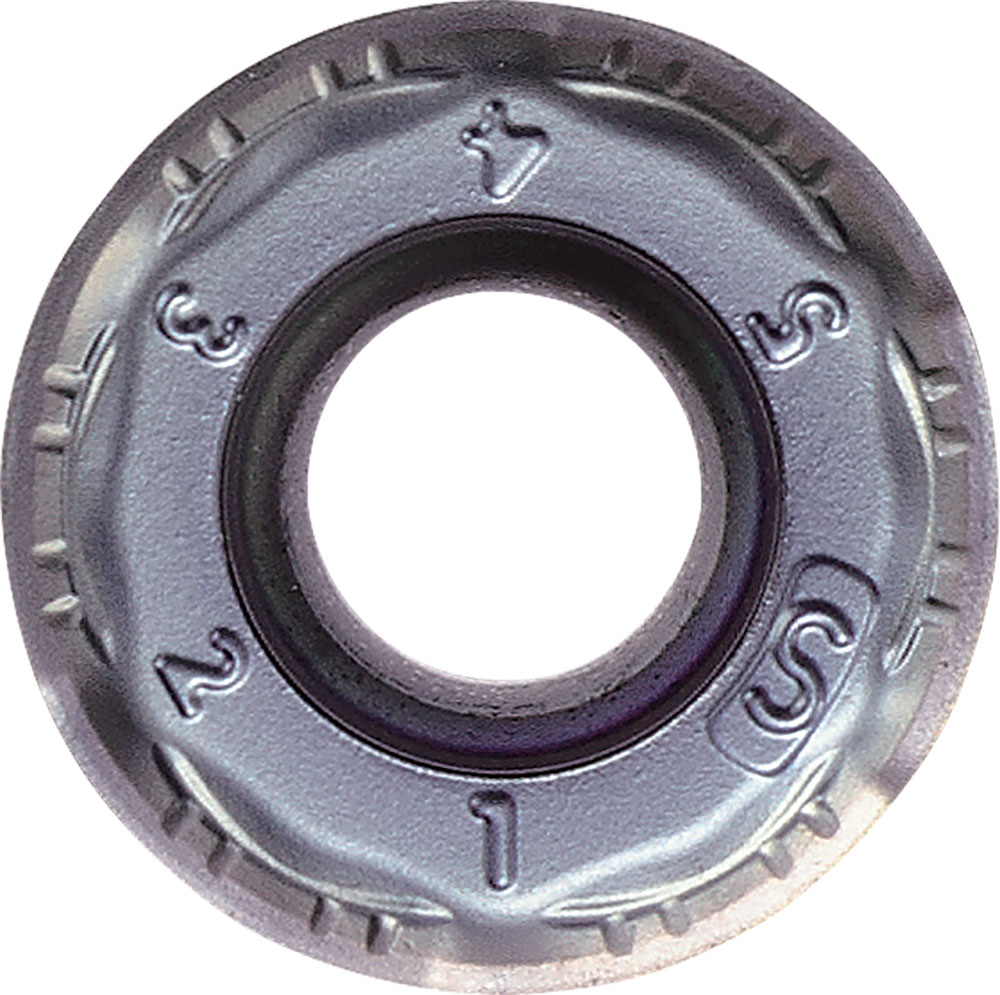

Kyocera RPGT 10T3M0ERSM PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB01651
$24.41
Kyocera RPGT 10T3M0ERSM PR1525 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
PR1525
Inscribed Circle (Metric)
10
Thickness
3.97 mm
Style
RPGT
Application
Facing, Pocketing, Profiling, Ramping, Shouldering, Slotting
Thickness (Fractional)
5/32
Shape
Round
Insert Holding Method
Screw
Old Material Number
8839234
ANSI Part Number
RPGT10T3M0ERSMPR1525
ISO Part Number
RPGT10T3M0ER-SM
Rake
Positive
Insert Size
10T3
Chipbreaker
M0ER-SM
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.39
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera RPGT 10T3M0ERSM PR1525 Grade PVD Carbide, Indexable Milling Insert
$24.41
