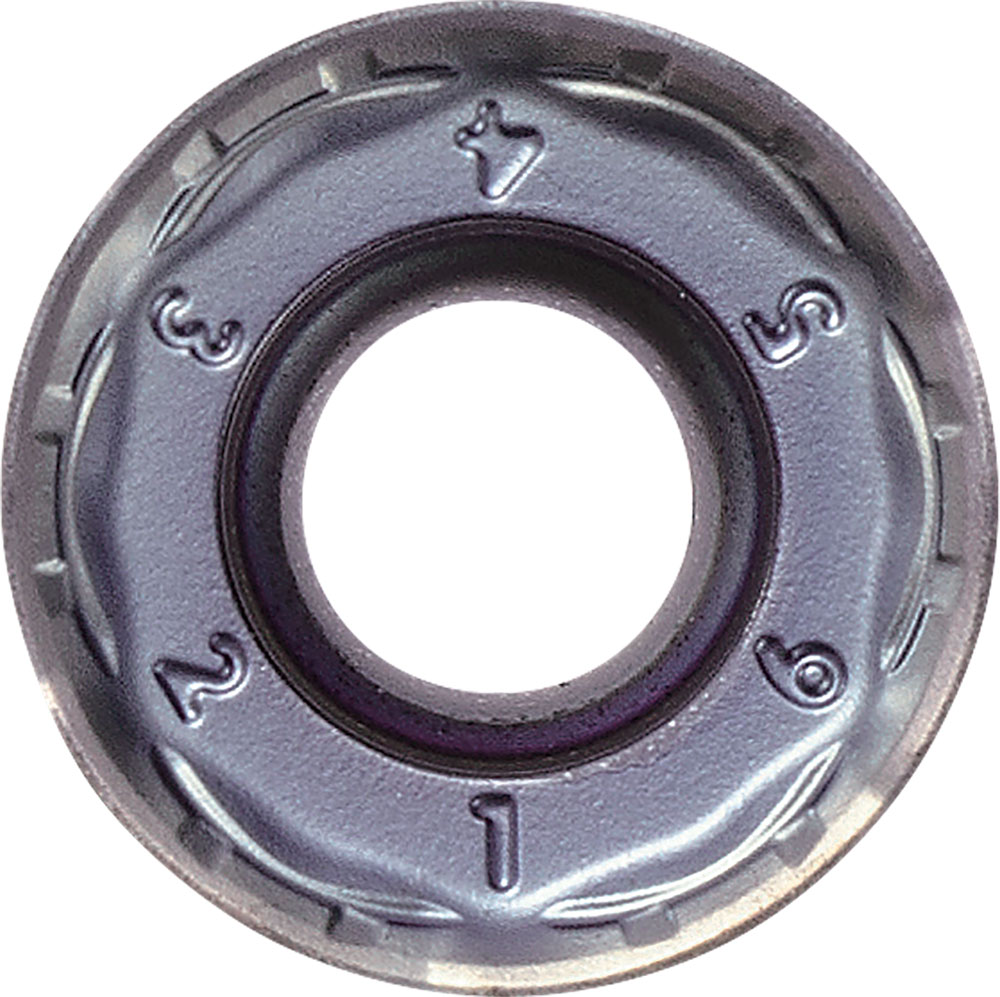

Kyocera RPGT 1204M0ERGM PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00125
$30.56
Kyocera RPGT 1204M0ERGM PR1810 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Grade
PR1810
Inscribed Circle (Metric)
12
Thickness
4.76 mm
Style
RPGT
Application
Facing, Pocketing, Profiling, Ramping, Shouldering, Slotting
Thickness (Fractional)
3/16
Shape
Round
Insert Holding Method
Screw
ANSI Part Number
RPGT1204M0ERGMPR1810
ISO Part Number
RPGT1204M0ER-GM
Rake
Positive
Number of Cutting Edges
6
Insert Size
1204
Chipbreaker
M0ER-GM
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.47
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
